View larger
Images are for illustrative purposes only. Please refer to data sheet for details

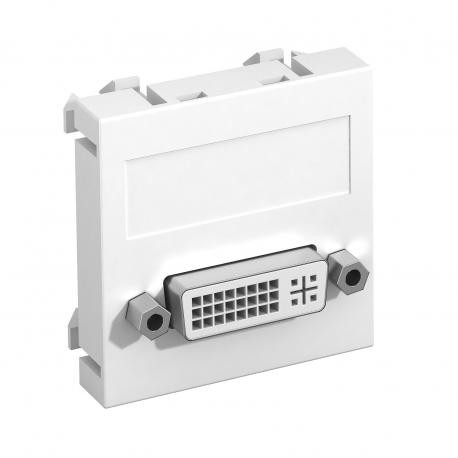

MTG-DVI S RW1 6104730 OBO BETTERMANN Multimedia support, DVI socket with screw connection, 45x45mm, Pure whi..
MTG-DVI S RW1
6104730
OBO BETTERMANN
1 Pcs.
Multimedia support, DVI socket with screw connection, 45x45mm, Pure white, 9010, Polycarbonate, PC
Multimedia socket, DVI MTG-DVI S RW1, with connection screw 45x45mm Polycarbonate, PC,
DVI-D socket, module 1, straight output, screw connection
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Note: Due to the device dimensions, device installation in Rapid 45 device installation trunking is not possible.
| Feature Name | Feature Value |
|---|---|
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Utilization (EF000133) | Other |
| Support ring (EF005709) | No |
| With dust cover (EF003893) | No |
| With hinged lid (EF000117) | No |
| Imprintable label (EF001519) | With indication plate |
| With imprint (EF004048) | No |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| Surface finishing (EF006569) | Matt |
| Colour (EF000007) | White |
| RAL-number (similar) (EF003882) | 9010 |
| Transparent (EF006243) | No |
| Type of fastening (EF002442) | Engage (snap) |
| Number of modules (module system) (EF009573) | 1 |
| With strain relief (EF000878) | No |
| Luster terminal (EF003868) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Device depth (EF008810) | 9 mm |
