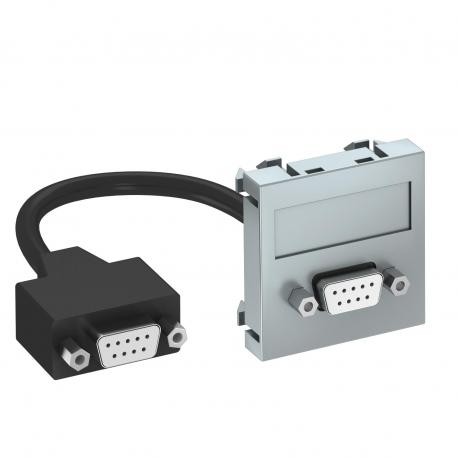

OBO BETTERMANN MTG-DB9 F AL1 MTG-DB9 F AL1 6104688 OBO BETTERMANN Multimedia support, D-Sub9 with cable, socket-socket, 45x45mm, Aluminiu..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

MTG-DB9 F AL1 6104688 OBO BETTERMANN Multimedia support, D-Sub9 with cable, socket-socket, 45x45mm, Aluminiu..

Name: MTG-DB9 F AL1 6104688 OBO BETTERMANN Multimedia support, D-Sub9 with cable, socket-socket, 45x45mm, Aluminiu..
Brand: OBO BETTERMANN
SKU: 6104688

Reference: MTG-DB9 F AL1

Code: 6104688

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Multimedia support, D-Sub9 with cable, socket-socket, 45x45mm, Aluminium painted, Polycarbonate, PC D-Sub9 connection, 1 module, straight outlet, with connection cable. Multimedia support with one D-Sub9 connection socket, straight cable outlet, with labelling panel, short D-Sub9 connection cable (RS232), socket-socket version. Support with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann MTG-DB9 F AL1 multimedia support, D-Sub9 with cable, socket-socket, 45x45mm, Aluminiu.. provides a pre-wired interface for serial communication lines in industrial workstations. Specialized multimedia inserts allow technicians to seamlessly integrate legacy control ports into modern structured cabling infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Antibacterial treatment: no
CO2 Footprint (GWP) Cradle-to-Gate: 0,0809 kg CO2e / 1 Piece
Colour: Aluminium painted
Combination: Basic element with central cover plate
Depth: 9 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Labelling panel: With labelling panel
Lamp-wire connector: no
Lighting: no
Material: Polycarbonate
Outlet direction: Straight
Protection rating: IP20

More info

▲

Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	0,0809 kg CO2e / 1 Piece
Colour	Aluminium painted
Combination	Basic element with central cover plate
Depth	9 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no
Lighting	no

Material	Polycarbonate
Outlet direction	Straight
Protection rating	IP20
Strain relief option	no
Suitable for number of sockets/couplings	1
Support ring	no
Surface version	Matt
Transparent	no
Use	D-Sub miniature
Width	45 mm
With dust protection	no
With printed label	no
