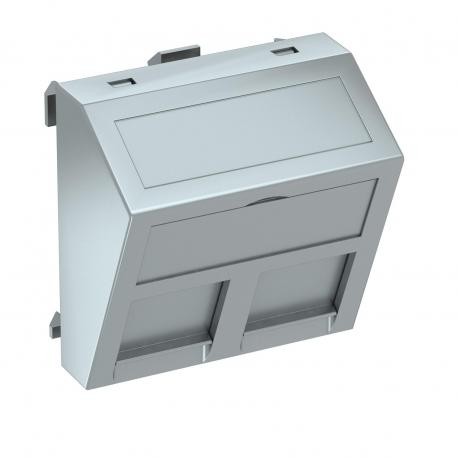

OBO BETTERMANN DTS-2F AL1 DTS-2F AL1 6119260 OBO BETTERMANN Data technology support f. 2 connection modules type F, 45x45mm, Aluminium..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

DTS-2F AL1 6119260 OBO BETTERMANN Data technology support f. 2 connection modules type F, 45x45mm, Aluminium..

Name: DTS-2F AL1 6119260 OBO BETTERMANN Data technology support f. 2 connection modules type F, 45x45mm, Aluminium..
Brand: OBO BETTERMANN
SKU: 6119260

Reference: DTS-2F AL1

Code: 6119260

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Data technology support f. 2 connection modules type F, 45x45mm, Aluminium painted, Polycarbonate, PC Data technology support, 1 module, slanting outlet, type F. Data technology support with slanting outlet and locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type F has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.The type F data technology support is suitable for accepting the following data connection modules: Avaya/Systimax: M series.For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann DTS-2F AL1 data technology support f. 2 connection modules type F, 45x45mm, Aluminium.. houses type F network connections securely within wall trunking and flush-mounted utility boxes. Standardized data technology supports help maintain clean cable management in structured building installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,2044 kg CO2e / 1 Piece
Colour: Aluminium painted
Combination: Basic element with central cover plate
Depth: 26 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Labelling panel: With labelling panel
Lamp-wire connector: no
Material: Polycarbonate
Mounting opening: Type F
Number of units: 1
Protection rating: IP20
Strain relief option: no

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,2044 kg CO2e / 1 Piece
Colour	Aluminium painted
Combination	Basic element with central cover plate
Depth	26 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no
Material	Polycarbonate

Mounting opening	Type F
Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Installable data connector
Width	45 mm
With dust protection	yes
With printed label	no
