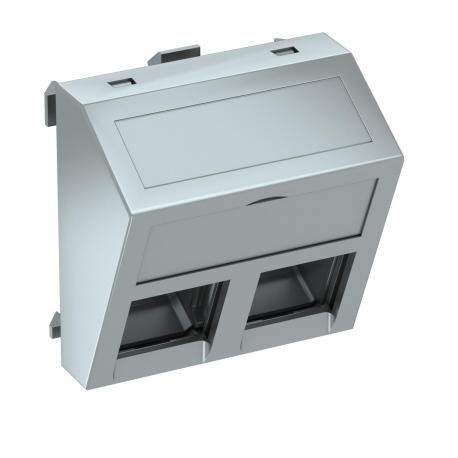

OBO BETTERMANN DTS-02C AL1 DTS-02C AL1 6119290 OBO BETTERMANN Data technology support f. 2 connection modules type C, 45x45mm, Aluminiu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DTS-02C AL1 6119290 OBO BETTERMANN Data technology support f. 2 connection modules type C, 45x45mm, Aluminiu..

DTS-02C AL1

6119290

OBO BETTERMANN

1 Pcs.

Data technology support f. 2 connection modules type C, 45x45mm, Aluminium painted, Polycarbonate, PC Frame for DTS-02C AL1 Data Module, for 2 Connected Modules. Type C 45x45mm Polycarbonate, PC, Data carrier, module 1, cross output, type C without dust shutter. Data carrier with cross output, without shut-off to accommodate two data connection modules with RJ45 socket. It can be installed both vertically and horizontally. Type C has a mounting opening of 19.30 x 14.80 mm and is designed for direct attachment of the data connection modules to the mounting opening. The Type C data carrier (without dust shutter) is suitable for accommodating the following data connection modules: 3M: Volition K6, K10 and cat. 6A. For installation in Rapid 45 and Rapid 80 conveyor channels, ISS distribution columns and underfloor systems.

Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
    Data carrier with cross output, without shut-off to accommodate two data connection modules with RJ45 socket. It can be installed both vertically and horizontally. Type C has a mounting opening of 19.30 x 14.80 mm and is designed for direct attachment of the data connection modules to the mounting opening.
    The Type C data carrier (without dust shutter) is suitable for accommodating the following data connection modules: 3M: Volition K6, K10 and cat. 6A.
    For installation in Rapid 45 and Rapid 80 channel carriers, ISS distribution columns and underfloor systems.

    ETIM for 6119290 Domestic wiring accessories and controls (EC000018)
    Feature Name Feature Value
    Assembly arrangement (EF000005) Basic unit with central cover plate
    Utilization (EF000133) Mounting cover data connector
    Support ring (EF005709) No
    With dust cover (EF003893) No
    With hinged lid (EF000117) No
    Imprintable label (EF001519) With indication plate
    With imprint (EF004048) No
    Material (EF002169) Plastic
    Material quality (EF001257) Other
    Halogen free (EF000025) Yes
    Surface finishing (EF006569) Matt
    Colour (EF000007) Aluminium
    Transparent (EF006243) No
    Type of fastening (EF002442) Engage (snap)
    Number of modules (module system) (EF009573) 1
    With strain relief (EF000878) No
    Luster terminal (EF003868) No
    Suitable for degree of protection (IP) (EF006755) IP20
    Device width (EF008808) 45 mm
    Device height (EF008809) 45 mm
    Device depth (EF008810) 26 mm
