View larger
Images are for illustrative purposes only. Please refer to data sheet for details

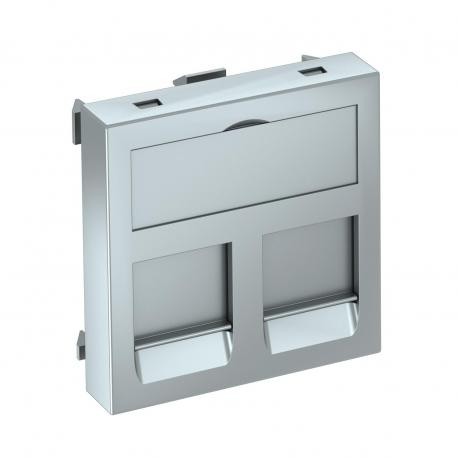

DTG-2PA AL1 6119230 OBO BETTERMANN Data technology support f. 2 connection modules type P, 45x45mm, Aluminiu..
DTG-2PA AL1
6119230
OBO BETTERMANN
1 Pcs.
Data technology support f. 2 connection modules type P, 45x45mm, Aluminium painted, Polycarbonate, PC
Frame for data module p/2 connected modules. Type PA 45x45mm Lacquered Aluminium Polycarbonate, PC
Data Carrier, Module 1, Straight Output, PA Type
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Data carrier with straight output and dust shutters to accommodate two data connection modules with RJ45 socket. It can be installed both vertically and horizontally. The PA type has a special receiver module and is designed for indirect attachment of the data connection modules to the mounting opening.
The PA data carrier is suitable for accommodating the following data connection modules: Panduit: Mini-Com.
For installation in Rapid 45 and Rapid 80 channel carriers, ISS distribution columns and underfloor systems.
The PA data carrier is suitable for accommodating the following data connection modules: Panduit: Mini-Com.
For installation in Rapid 45 and Rapid 80 channel carriers, ISS distribution columns and underfloor systems.
| Feature Name | Feature Value |
|---|---|
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Utilization (EF000133) | Mounting cover data connector |
| Support ring (EF005709) | No |
| With dust cover (EF003893) | Yes |
| With hinged lid (EF000117) | No |
| Imprintable label (EF001519) | With indication plate |
| With imprint (EF004048) | No |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| Surface finishing (EF006569) | Matt |
| Colour (EF000007) | Aluminium |
| Transparent (EF006243) | No |
| Type of fastening (EF002442) | Engage (snap) |
| With strain relief (EF000878) | No |
| Luster terminal (EF003868) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device width (EF008808) | 45 mm |
| Device height (EF008809) | 45 mm |
| Device depth (EF008810) | 9 mm |
