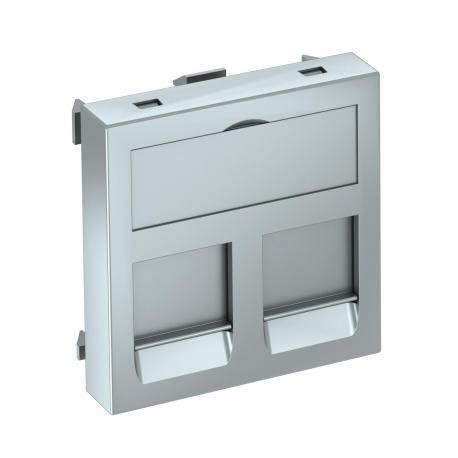

OBO BETTERMANN DTG-2EP AL1 DTG-2EP AL1 6119236 OBO BETTERMANN Data technology support f.2 connection modules type EP, 45x45mm, Aluminiu..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

DTG-2EP AL1 6119236 OBO BETTERMANN Data technology support f.2 connection modules type EP, 45x45mm, Aluminiu..

Name: DTG-2EP AL1 6119236 OBO BETTERMANN Data technology support f.2 connection modules type EP, 45x45mm, Aluminiu..
Brand: OBO BETTERMANN
SKU: 6119236

Reference: DTG-2EP AL1

Code: 6119236

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Data technology support f.2 connection modules type EP, 45x45mm, Aluminium painted, Polycarbonate, PC Frame for data module p/2 connected modules. Type EP 45x45mm Lacquered Aluminium Polycarbonate, PC Data technology support, 1 module, straight outlet, type EP. Data technology support with straight outlet and locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type EP has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.The type EP data technology support is suitable for accepting the following data connection modules: Leoni Kerpen: MegaLine-Connect45 ELine.For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann DTG-2EP AL1 data technology support f.2 connection modules type EP, 45x45mm, Aluminiu.. holds specialized communication modules inside standard 45x45mm mounting frames and floor boxes. These components facilitate clean, adaptable cable termination points across modern office spaces and industrial control rooms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,1811 kg CO2e / 1 Piece
Colour: Aluminium painted
Combination: Basic element with central cover plate
Depth: 9 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Labelling panel: With labelling panel
Lamp-wire connector: no
Material: Polycarbonate
Mounting opening: Type EP
Protection rating: IP20
Strain relief option: no
Support ring: no

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,1811 kg CO2e / 1 Piece
Colour	Aluminium painted
Combination	Basic element with central cover plate
Depth	9 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no

Material	Polycarbonate
Mounting opening	Type EP
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Installable data connector
Width	45 mm
With dust protection	yes
With printed label	no
