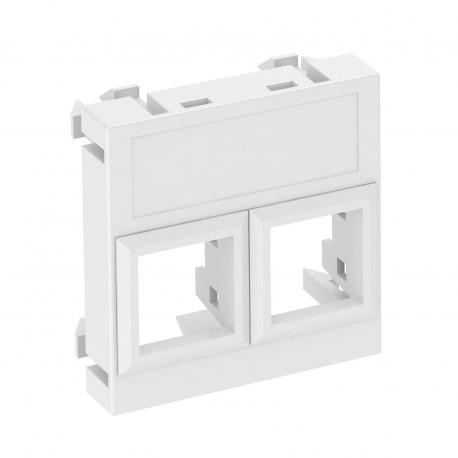

OBO BETTERMANN DTG-02LE RW1 DTG-02LE RW1 6119304 OBO BETTERMANN Data technology support f.2 connection modules type LE, 45x45mm, Pure wh..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

DTG-02LE RW1 6119304 OBO BETTERMANN Data technology support f.2 connection modules type LE, 45x45mm, Pure wh..

Name: DTG-02LE RW1 6119304 OBO BETTERMANN Data technology support f.2 connection modules type LE, 45x45mm, Pure wh..
Brand: OBO BETTERMANN
SKU: 6119304

Reference: DTG-02LE RW1

Code: 6119304

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Data technology support f.2 connection modules type LE, 45x45mm, Pure white, 9010, Polycarbonate, PC Data technology support, 1 module, straight outlet, type LE. Data technology support with straight outlet and without a locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type LE has a special module seat and is designed for indirect fastening of the data connection modules in the mounting opening.The type LE data technology support is suitable for accepting the following data connection modules: LexCom/Schneider: LexCom 125, LexCom 250 and LexCom 500.For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann DTG-02LE RW1 data technology support f.2 connection modules type LE, 45x45mm, Pure wh.. serves as a modular adapter plate used to house specific connection modules within structured communication networks. Technicians use this hardware to mount communication inserts securely in wall channels and floor boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,0735 kg CO2e / 1 Piece
Colour: Pure white
RAL 9010:
Combination: Basic element with central cover plate
Depth: 9 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Labelling panel: With labelling panel
Lamp-wire connector: no
Material: Polycarbonate
Mounting opening: Type LE
Number of units: 1
Protection rating: IP20
Strain relief option: no

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,0735 kg CO2e / 1 Piece
Colour	Pure white; RAL 9010
Combination	Basic element with central cover plate
Depth	9 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no
Material	Polycarbonate

Mounting opening	Type LE
Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Installable data connector
Width	45 mm
With dust protection	no
With printed label	no
