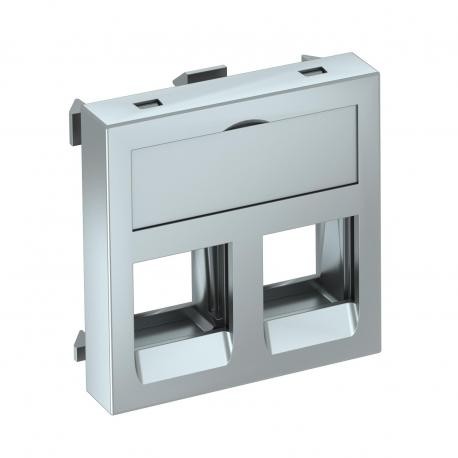

OBO BETTERMANN DTG-02C AL1 DTG-02C AL1 6119284 OBO BETTERMANN Data technology support f. 2 connection modules type C, 45x45mm, Aluminiu..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

DTG-02C AL1 6119284 OBO BETTERMANN Data technology support f. 2 connection modules type C, 45x45mm, Aluminiu..

Name: DTG-02C AL1 6119284 OBO BETTERMANN Data technology support f. 2 connection modules type C, 45x45mm, Aluminiu..
Brand: OBO BETTERMANN
SKU: 6119284

Reference: DTG-02C AL1

Code: 6119284

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Data technology support f. 2 connection modules type C, 45x45mm, Aluminium painted, Polycarbonate, PC Data technology support, 1 module, straight outlet, type C, without dust protection slider. Data technology support with straight outlet and without a locking slider to accept two data technology connection modules with RJ45 socket. The locking fastening is suitable for horizontal and vertical installation in the system environment. Type C has a mounting opening of 19.30 x 14.80 mm and is designed for direct fastening of the data connection modules in the mounting opening.The type C data technology support (without dust protection slider) is suitable for accepting the following data connection modules: 3M: Volition K6, K10 and Cat. 6A.For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann DTG-02C AL1 data technology support f. 2 connection modules type C, 45x45mm, Aluminiu.. houses communication and network jacks within standard electrical installation trunking systems. Data technology supports simplify modular cable management in raised floors, wall ducts, and service poles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,1603 kg CO2e / 1 Piece
Colour: Aluminium painted
Combination: Basic element with central cover plate
Depth: 9 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Labelling panel: With labelling panel
Lamp-wire connector: no
Material: Polycarbonate
Mounting opening: Type C
Protection rating: IP20
Strain relief option: no
Support ring: no

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,1603 kg CO2e / 1 Piece
Colour	Aluminium painted
Combination	Basic element with central cover plate
Depth	9 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no

Material	Polycarbonate
Mounting opening	Type C
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Installable data connector
Width	45 mm
With dust protection	no
With printed label	no
