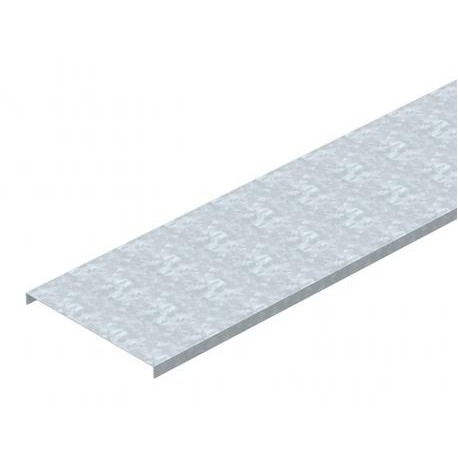

OBO BETTERMANN DRLU 550 FS DRLU 550 FS 6052571 OBO BETTERMANN LID NON-PERFORATED DRLU 550 FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRLU 550 FS 6052571 OBO BETTERMANN LID NON-PERFORATED DRLU 550 FS

DRLU 550 FS

6052571

OBO BETTERMANN

3 m.

LID NON-PERFORATED DRLU 550 FS Un perforated lid, p/band.portac.y band.de esc., 550x3000, galvanized steel in band, DIN EN 10346 DRLU 550 FS 6052571 Unperforated cover FS

Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An unperforated cover for cable tray and cable ladder, referenced as the Obo Bettermann DRLU 550 FS, provides physical protection and containment for routed cables in industrial and commercial installations. Such covers shield wiring runs from environmental debris, dust, and mechanical impacts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type: DRLU 550 FS
  • Dimen- sion B mm: 550
  • Plate thickness mm: 1,25
  • Length mm: 3000
  • Pack. m: 3
  • Weight kg/100 m: 678,100
  • Cover width (EF005146): 550 mm
  • Material thickness (EF000386): 1.5 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): Yes
  • Suitable for cable ladder (EF005165): Yes
  • Length (EF001438): 3000 mm
  • Type of fastening (EF002442): Screw-on
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No

More info

▲

Cover for cable trays and mesh cable trays.


TypeDRLU 550 FS
Dimen- sion B mm550
Plate thickness mm1,25
Length mm3000
Pack. m3
Weight kg/100 m678,100
