View larger
Images are for illustrative purposes only. Please refer to data sheet for details
DGRR 600 FT 6001834 OBO BETTERMANN LID 600 FT
DGRR 600 FT
6001834
OBO BETTERMANN
3 m.
LID 600 FT

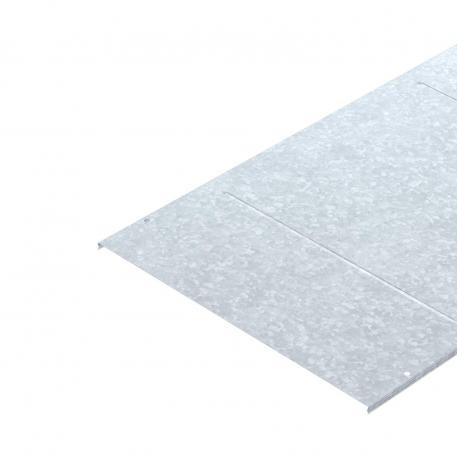

Closing lid, for grid tray, 600x3000, hot dip galvanized steel, DIN EN ISO 1461
Cover for mesh cable tray, latchable FT. Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for industrial areas such as mechanical engineering.When using covers outdoors, additional measures against the influence of wind may need to be taken.
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 10,8221 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 600x3000 |
| Dimension B | 598 mm |
| Fastening type | Locking |
| Height | 0,59 in |
| Height | 15 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Plate thickness | 0,75 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Surface | Hot-dip galvanised |
| Width | 23,54 in |
| Width | 598 mm |
| Feature Name | Feature Value |
|---|---|
| Cover width (EF005146) | 598 mm |
| Material thickness (EF000386) | 0.75 mm |
| Suitable for cable tray (EF005166) | No |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | No |
| Length (EF001438) | 3000 mm |
| Type of fastening (EF002442) | Snap on |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Hot dip galvanized |
