OBO BETTERMANN DGRR 50 FT DGRR 50 FT 6001820 OBO BETTERMANN CLOSURE CAP 50 FT

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

DGRR 50 FT 6001820 OBO BETTERMANN CLOSURE CAP 50 FT

Name: DGRR 50 FT 6001820 OBO BETTERMANN CLOSURE CAP 50 FT
Brand: OBO BETTERMANN
SKU: 6001820

Reference: DGRR 50 FT

Code: 6001820

Manufacturer: OBO BETTERMANN

Units per package: 3 m.

Description:

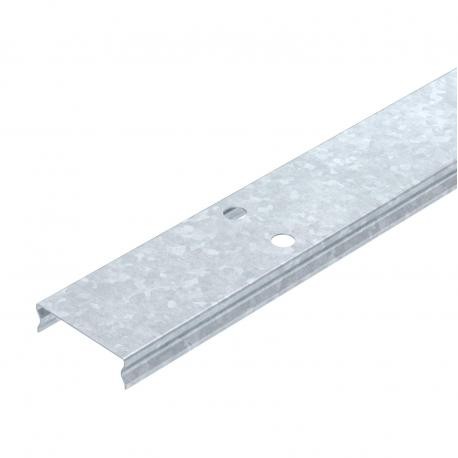

CLOSURE CAP 50 FT Closing lid, for grid tray, 50x3000, hot dip galvanized steel, DIN EN ISO 1461 Cover for mesh cable tray, latchable FT. Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for industrial areas such as mechanical engineering.When using covers outdoors, additional measures against the influence of wind may need to be taken.

Categories:
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann DGRR 50 FT 6001820 closure cap functions as a protective end-piece for wire mesh tray lines, preventing cable snagging and sealing open profile sections against environmental entry. These parts help maintain clean and compliant cable routing installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Cover width (EF005146): 50 mm
Material thickness (EF000386): 0.75 mm
Suitable for cable tray (EF005166): No
Suitable for wire mesh tray (EF005163): Yes
Suitable for cable ladder (EF005165): No
Length (EF001438): 3000 mm
Type of fastening (EF002442): Snap on
Suitable for circuit integrity (EF007806): No
Material (EF002169): Steel
Stainless steel, pickled (EF006388): No
Surface protection (EF000139): Hot dip galvanized

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	1,5214 kg CO2e / 1 Meter
Colour	zinc
Dimension	50x3000
Dimension B	50 mm
Fastening type	Locking
Height	15 mm
Height	0,59 in
Length	3000 mm
Maintain electrical functions	no

Material	Steel
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	no
Suitable for mesh cable tray	yes
Surface	Hot-dip galvanised
Width	50 mm
Width	1,97 in
