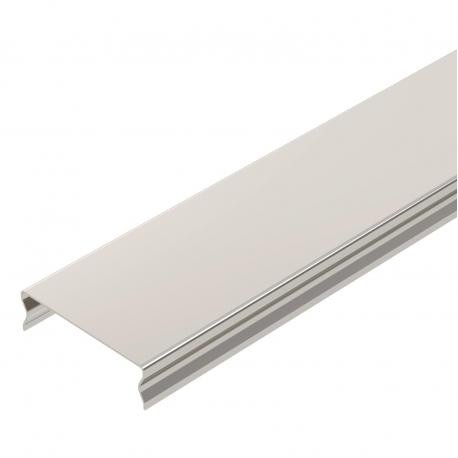

OBO BETTERMANN DGRR 50 A2 DGRR 50 A2 6001860 OBO BETTERMANN CLOSURE CAP 50 A2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DGRR 50 A2 6001860 OBO BETTERMANN CLOSURE CAP 50 A2

DGRR 50 A2

6001860

OBO BETTERMANN

3 m.

CLOSURE CAP 50 A2 Closing lid for grid tray 50x3000, stainless steel 1.4301, A2, 1.4301 Cover for mesh cable tray, latchable A2. Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for the foodstuffs or chemicals industries.When using covers outdoors, additional measures against the influence of wind may need to be taken.

Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann DGRR 50 A2 6001860 closure cap provides a secure termination point for wire mesh tray lines, protecting exposed wire pathways from physical wear and environmental debris. Durable stainless steel construction ensures reliable protection in demanding facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cover width (EF005146): 50 mm
  • Material thickness (EF000386): 0.8 mm
  • Suitable for cable tray (EF005166): No
  • Suitable for wire mesh tray (EF005163): Yes
  • Suitable for cable ladder (EF005165): No
  • Length (EF001438): 3000 mm
  • Type of fastening (EF002442): Snap on
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Stainless steel
  • Stainless steel, pickled (EF006388): No
  • Material quality (EF001257): Rustproof and acidproof steel

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,2494 kg CO2e / 1 Meter
Colourstainless steel
Dimension50x3000
Dimension B50 mm
Fastening typeLocking
Height0,59 in
Height15 mm
Length3000 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Plate thickness0,8 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
SurfaceBright, treated
Width1,97 in
Width50 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
