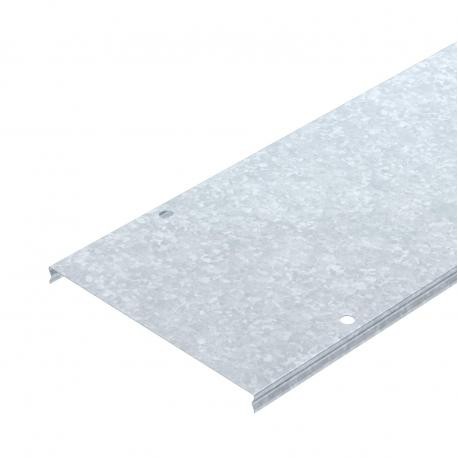

OBO BETTERMANN DGRR 200 FT DGRR 200 FT 6001826 OBO BETTERMANN END COVER 200 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DGRR 200 FT 6001826 OBO BETTERMANN END COVER 200 FT

DGRR 200 FT

6001826

OBO BETTERMANN

3 m.

END COVER 200 FT Closing lid, for grid tray, 200x3000, hot dip galvanized steel, DIN EN ISO 1461 Cover for mesh cable tray, latchable FT. Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for industrial areas such as mechanical engineering.When using covers outdoors, additional measures against the influence of wind may need to be taken.

Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An end cover component, designated as the Obo Bettermann DGRR 200 FT, is used to cleanly cap off and protect the open ends of wire mesh tray systems. These terminal elements prevent accidental cable snagging and keep foreign materials from entering the raceway structure.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Cover width (EF005146): 198 mm
  • Material thickness (EF000386): 0.75 mm
  • Suitable for cable tray (EF005166): No
  • Suitable for wire mesh tray (EF005163): Yes
  • Suitable for cable ladder (EF005165): No
  • Length (EF001438): 3000 mm
  • Type of fastening (EF002442): Snap on
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,2201 kg CO2e / 1 Meter
Colourzinc
Dimension200x3000
Dimension B198 mm
Fastening typeLocking
Height15 mm
Height0,59 in
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness0,75 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
SurfaceHot-dip galvanised
Width7,8 in
Width198 mm
