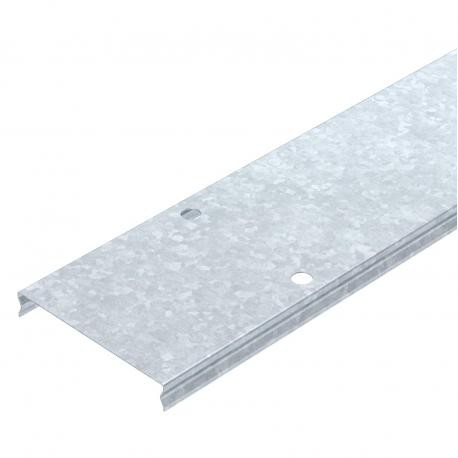

DGRR 100 FT 6001822 OBO BETTERMANN END COVER 100 FT
DGRR 100 FT
6001822
OBO BETTERMANN
3 m.
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An end cover component, such as the Obo Bettermann DGRR 100 FT, is designed to cap and secure open sections of wire mesh cable management runs. This fitting ensures exposed edges are safely sealed, protecting internal cabling from physical damage and environmental ingress.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Cover width (EF005146): 98 mm
- Material thickness (EF000386): 0.75 mm
- Suitable for cable tray (EF005166): No
- Suitable for wire mesh tray (EF005163): Yes
- Suitable for cable ladder (EF005165): No
- Length (EF001438): 3000 mm
- Type of fastening (EF002442): Snap on
- Suitable for circuit integrity (EF007806): No
- Material (EF002169): Steel
- Stainless steel, pickled (EF006388): No
- Surface protection (EF000139): Hot dip galvanized
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,1745 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 100x3000 |
| Dimension B | 98 mm |
| Fastening type | Locking |
| Height | 0,59 in |
| Height | 15 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Plate thickness | 0,75 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Surface | Hot-dip galvanised |
| Width | 3,86 in |
| Width | 98 mm |
