View larger
Images are for illustrative purposes only. Please refer to data sheet for details

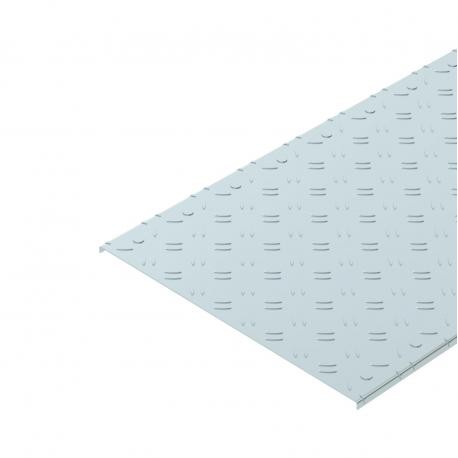

DBKR 500 FS 6049127 OBO BETTERMANN COVER FLUTED STEEL
DBKR 500 FS
6049127
OBO BETTERMANN
3 m.
COVER FLUTED STEEL
Lid, striated steel, p/ passable tray, 500x3000, galvanized steel in band, DIN EN 10346
Chequer plate cover DBKR FS. Chequer plate cover for the walkable cable tray system, type BKR. The cover thickness is comprised of 2.0 mm strip-galvanised sheet steel and a 1.3 mm chequer height.Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 18,4975 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 500x3000 |
| Dimension B | 500 mm |
| Dimension b | 50 mm |
| Dimension L | 3000 mm |
| Fastening type | On top |
| Height | 13 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Steel |
| Plate thickness | 3,3 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Width | 500 mm |
| Feature Name | Feature Value |
|---|---|
| Cover width (EF005146) | 500 mm |
| Material thickness (EF000386) | 3.3 mm |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for wire mesh tray (EF005163) | No |
| Suitable for cable ladder (EF005165) | No |
| Length (EF001438) | 3000 mm |
| Type of fastening (EF002442) | Overlay |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
