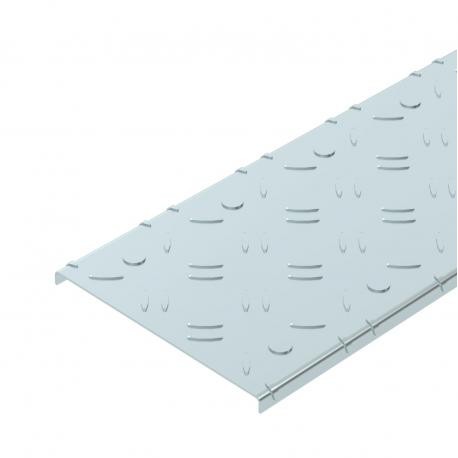

OBO BETTERMANN DBKR 200 FS DBKR 200 FS 6049121 OBO BETTERMANN COVER FLUTED STEEL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBKR 200 FS 6049121 OBO BETTERMANN COVER FLUTED STEEL

DBKR 200 FS

6049121

OBO BETTERMANN

3 m.

COVER FLUTED STEEL Lid, striated steel, p/ passable tray, 200x3000, galvanized steel in band, DIN EN 10346 Chequer plate cover DBKR FS. Chequer plate cover for the walkable cable tray system, type BKR. The cover thickness is comprised of 2.0 mm strip-galvanised sheet steel and a 1.3 mm chequer height.Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.

Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cover fluted steel shields industrial cable trays from environmental hazards and physical damage, providing a heavy-duty protective enclosure for electrical wiring pathways. These durable covers ensure long-term integrity in harsh plant environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cover width (EF005146): 200 mm
  • Material thickness (EF000386): 3.3 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): No
  • Suitable for cable ladder (EF005165): No
  • Length (EF001438): 3000 mm
  • Type of fastening (EF002442): Overlay
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Pre-galvanised

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate7,9304 kg CO2e / 1 Meter
Colourzinc
Dimension200x3000
Dimension B200 mm
Dimension b50 mm
Dimension L3000 mm
Fastening typeOn top
Height13 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness3,3 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width200 mm
