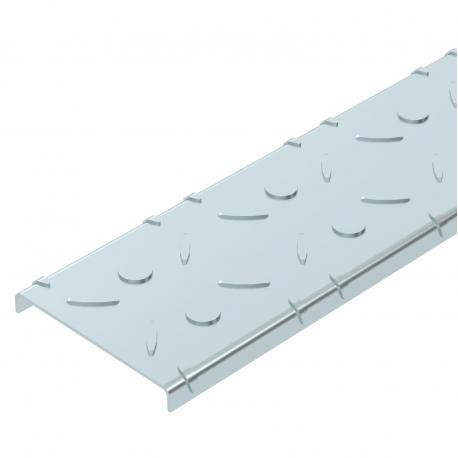

OBO BETTERMANN DBKR 100 FS DBKR 100 FS 6049119 OBO BETTERMANN COVER FLUTED STEEL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBKR 100 FS 6049119 OBO BETTERMANN COVER FLUTED STEEL

DBKR 100 FS

6049119

OBO BETTERMANN

3 m.

COVER FLUTED STEEL Lid, striated steel, p/ passable tray, 100x3000, galvanized steel in band, DIN EN 10346 Chequer plate cover DBKR FS. Chequer plate cover for the walkable cable tray system, type BKR. The cover thickness is comprised of 2.0 mm strip-galvanised sheet steel and a 1.3 mm chequer height.Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.

Cables > Cover for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann DBKR 100 FS 6049119 fluted steel cover provides rigid top-side protection for heavy-duty cable management pathways, safeguarding enclosed conductors against physical impact and falling objects. Fluted structural designs add extra durability to standard routing runs in commercial and industrial structures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cover width (EF005146): 100 mm
  • Material thickness (EF000386): 3.3 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): No
  • Suitable for cable ladder (EF005165): No
  • Length (EF001438): 3000 mm
  • Type of fastening (EF002442): Overlay
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Pre-galvanised

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,4127 kg CO2e / 1 Meter
Colourzinc
Dimension100x3000
Dimension b50 mm
Dimension B100 mm
Dimension L3000 mm
Fastening typeOn top
Height13 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness3,3 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width100 mm
