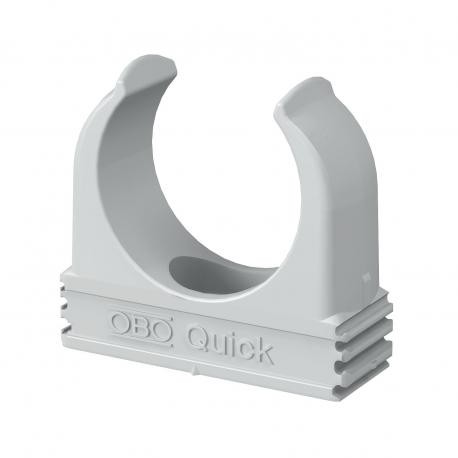

2955 M50 2149034 OBO BETTERMANN Quick clip , M50, Light grey, 7035, Polypropylene, PP
2955 M50
2149034
OBO BETTERMANN
25 Pcs.
Quick clip , M50, Light grey, 7035, Polypropylene, PP
Quick clip, light grey. Flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
Cables > Tube clamp
Clamps 2955
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann quick clip allows efficient mounting of large conduits and cabling runs across structural surfaces in industrial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breaking load: 0,17 kN
- Clamping range D, max.: 50 mm
- Clamping range D, min.: 50 mm
- Closed: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0608 kg CO2e / 1 Piece
- Colour: Light grey
- RAL 7035: null
- Dimension: M50
- Dimension A: 70,3 mm
- Dimension B: 18 mm
- Dimension C: 32 mm
- Dimension D: 49 mm
- Dimension E: 12 mm
- Dimension F: 6 mm
- Dimension h: 14 mm
- Dimension H: 63 mm
- Expandable: yes
More info
▲| Breaking load | 0,17 kN |
|---|---|
| Clamping range D, max. | 50 mm |
| Clamping range D, min. | 50 mm |
| Closed | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0608 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M50 |
| Dimension A | 70,3 mm |
| Dimension B | 18 mm |
| Dimension C | 32 mm |
| Dimension D | 49 mm |
| Dimension E | 12 mm |
| Dimension F | 6 mm |
|---|---|
| Dimension h | 14 mm |
| Dimension H | 63 mm |
| Expandable | yes |
| Fastening type | Screw hole |
| Halogen-free | yes |
| Material | Polypropylene |
| Nominal size | M50 |
| Number of cables/pipes | 1 |
| Pull-out value | 135 N |
| UV-resistant | no |
| With inlay | no |
