View larger
Images are for illustrative purposes only. Please refer to data sheet for details

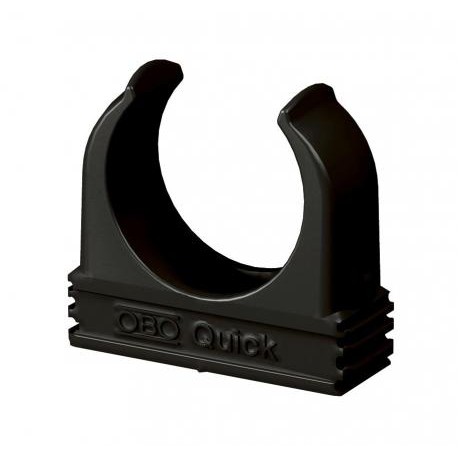

2955 M20 SW 2149563 OBO BETTERMANN Quick clip , M20, Jet black, 9005, Polypropylene, PP
2955 M20 SW
2149563
OBO BETTERMANN
100 Pcs.
Quick clip , M20, Jet black, 9005, Polypropylene, PP
Quick clip, black. Flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
Cables > Tube clamp
Clamps 2955
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Closed | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0151 kg CO2e / 1 Piece |
| Colour | Jet black; RAL 9005 |
| Dimension | M20 |
| Dimension A | 30,3 mm |
| Dimension B | 16 mm |
| Dimension C | 14 mm |
| Dimension D | 19,4 mm |
| Dimension E | 9 mm |
| Dimension F | 4,2 mm |
| Dimension H | 29,5 mm |
| Dimension h | 10 mm |
|---|---|
| Expandable | yes |
| Fastening type | Screw hole |
| Halogen-free | yes |
| Material | Polypropylene |
| Nominal size | M20 |
| Number of cables/pipes | 1 |
| Pull-out value | 75 N |
| UV-resistant | no |
| With inlay | no |
