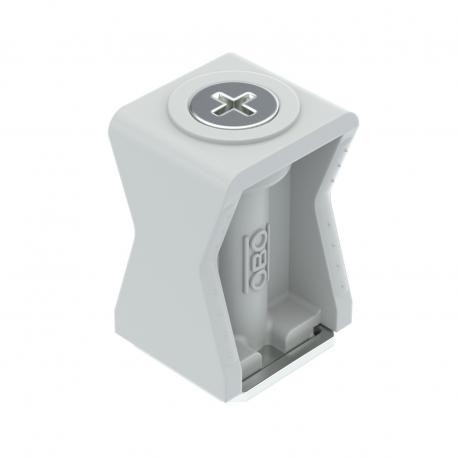

2050 5-25 LGR 2254026 OBO BETTERMANN Series clip , 5-25mm, Light grey, 7035, Polystyrene, PS
2050 5-25 LGR
2254026
OBO BETTERMANN
100 Pcs.
Cables > Pipe saddle clamp
Clamps 2054
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Series clip systems allow multiple cables or conduits to be snapped into modular rail supports for efficient electrical panel assembly. The Obo Bettermann 2050 5-25 LGR provides polystyrene insulation security for multi-line configurations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bolt: M4 x 30
- Clamping range D, max.: 25 mm
- Clamping range D, min.: 5 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0219 kg CO2e / 1 Piece
- Colour: Light grey
- RAL: 7035
- Dimension: 5-25mm
- Dimension B: 14 mm
- Dimension B1: 7,5 mm
- Dimension H: 24 mm
- Dimension H1: 12,5 mm
- Distance to the wall: no
- Fastening type: Rail fastening
- for rail with slot width (with interval), max.: 12 mm
- for rail with slot width (with interval), min.: 11 mm
- Halogen-free: yes
- Impact-resistant: no
More info
▲| Bolt | M4 x 30 |
|---|---|
| Clamping range D, max. | 25 mm |
| Clamping range D, min. | 5 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0219 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | 5-25mm |
| Dimension B | 14 mm |
| Dimension B1 | 7,5 mm |
| Dimension H | 24 mm |
| Dimension H1 | 12,5 mm |
| Distance to the wall | no |
| Fastening type | Rail fastening |
|---|---|
| for rail with slot width (with interval), max. | 12 mm |
| for rail with slot width (with interval), min. | 11 mm |
| Halogen-free | yes |
| Impact-resistant | no |
| Material | Polystyrene |
| Nominal diameter | 25 mm |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| UV-resistant | no |
