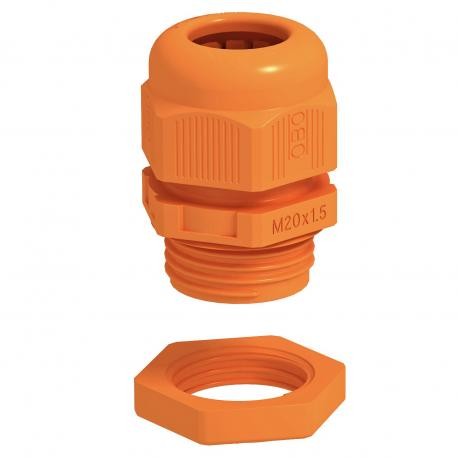

V-TEC VM20+ OR 7205660 OBO BETTERMANN Cable gland with locknut, M20, Pastel orange, 2003, Polyamide, fibregl..
V-TEC VM20+ OR
7205660
OBO BETTERMANN
10 Pcs.
Cable gland with locknut, M20, Pastel orange, 2003, Polyamide, fibreglass reinforced, PA/GF
Cable gland with locknut as a set. Robust cap nut cable gland with metric connecting thread to IEC 423, including pre-mounted locknut.For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.Colour: Pastel orange.
Cables > Cable gland
BSS fire protection systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Featuring a distinct pastel orange tone, the Obo Bettermann V-TEC VM20+ OR cable gland with locknut secures wiring pathways. Cable glands provide reliable strain relief and seal cabinet entry points against environmental elements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0553 kg CO2e / 1 Piece
- Colour: Pastel orange
- RAL: 2003
- Dimension: M20
- Dimension E: 27 mm
- Dimension E1 (mm): 27 mm
- Dimension E2: 27 mm
- Dimension G: M20 x 1,5 mm
- Dimension L max.: 30,5 mm
- Dimension L min.: 23,5 mm
- Dimension L1: 9 mm
- Dimension L2: 5 mm
- Dimension L3: 6 mm
- Fibre-glass reinforced: no
- Flame-resistant: acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
- Flat cable gland: no
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0553 kg CO2e / 1 Piece |
| Colour | Pastel orange; RAL 2003 |
| Dimension | M20 |
| Dimension E | 27 mm |
| Dimension E1 (mm) | 27 mm |
| Dimension E2 | 27 mm |
| Dimension G | M20 x 1,5 mm |
| Dimension L max. | 30,5 mm |
| Dimension L min. | 23,5 mm |
| Dimension L1 | 9 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 6 mm |
| Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Impact-resistant | no |
|---|---|
| Material | Polyamide |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 13 mm |
| Sealing area D, min. | 6 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | M20 x 1,5 |
| Thread increase | 1,5 mm |
| Thread length | 9 mm |
| Thread type | Metric |
| Unstable torque | 3,8 Nm |
| WAF | 24 |
| WAF 1 | 24 mm |
| WAF 2 | 24 mm |
| With locknut | yes |
