View larger
Images are for illustrative purposes only. Please refer to data sheet for details
RKSN2 9 MS 20 7409212 OBO BETTERMANN CAP AND MARCO SQ RKSN2 9 MS 20
RKSN2 9 MS 20
7409212
OBO BETTERMANN
1 Pcs.
CAP AND MARCO SQ RKSN2 9 MS 20

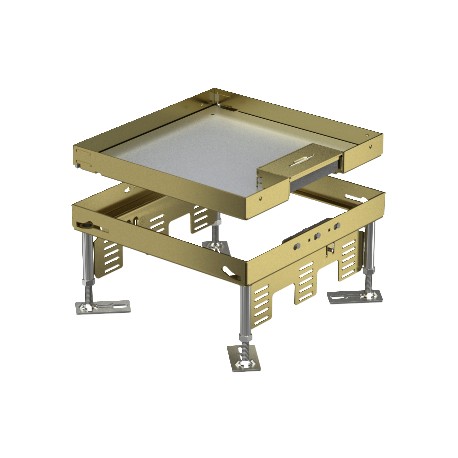

RKSN2 9 MS 20 square cover and frame set, with cable outlet 243x243mm Brass, CuZn,
Height-adjustable cassette with cord outlet, RKSN, brass. Height-adjustable cassette of nominal size 9 with cord outlet, for the installation of accessories in dry-cleaned floors indoors.For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 6 Modul 45® devices.Height-adjustable square cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleaned floors in indoor areas. Three cover plates APMT5 can be installed. Suitable only for smooth floor coverings.
Automation > Levelling cassette for duct mounting, raised and underfloor installation
UFS Underfloor piping systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 14,0497 kg CO2e / 1 Piece |
| Decouplable | no |
| Device support to accept mounting boxes | yes |
| Dimension | 243x243mm |
| Dimension h | 105 mm |
| Floor care | Dry |
| Floor covering thickness | 20 mm |
| Floor height, max. | 150 mm |
| Floor height, min. | 105 mm |
| Heavy-duty version | no |
| Height-adjustment range, max. | 150 mm |
| Height-adjustment range, min. | 105 mm |
| Installation depth | 105 mm |
| Installation system type | UT4 |
| Length of installation dimensions | 244 mm |
|---|---|
| Material | Brass |
| Nominal size | 350 mm |
| Nominal size for device installation units | 9 |
| Number of cable outlets | 1 |
| Number of installable devices | 12 |
| Number of mounting boxes | 3 |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Version for | Square |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Wide installation dimensions | 244 mm |
| Feature Name | Feature Value |
|---|---|
| Nominal dimension (EF000132) | 350 mm |
| Min. built-in depth (EF005027) | 105 mm |
| Levelling height (EF007999) | 105 mm |
| Floor maintenance (EF004546) | Dry |
| Model (EF000010) | Square |
| Material (EF002169) | Brass |
| Number of conduit outlets (EF004424) | 1 |
| Type of conduit outlet (EF004474) | Swivelling |
| Chassis part for device cups (EF004750) | Yes |
| Length built-in dimension (EF004875) | 244 mm |
| Width built-in dimension (EF004566) | 244 mm |
| Number of appliances to build in (EF000219) | 12 |
| Number of device cups (EF000436) | 3 |
