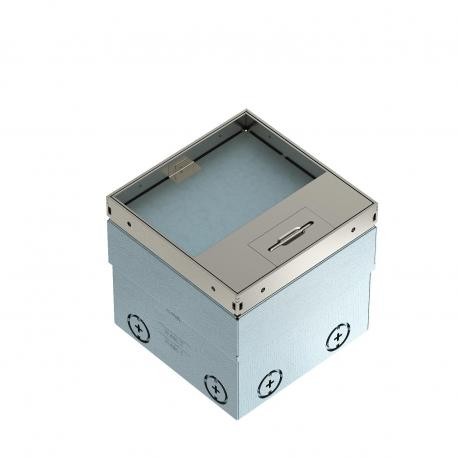

UDHOME2 GV15 7368340 OBO BETTERMANN Empty full unit 140x140x110, stainless steel, A2
UDHOME2 GV15
7368340
OBO BETTERMANN
1 Pcs.
Automation > Installation box for underfloor-installation
UFS Underfloor piping systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Complete unit of square box for mounting on hollow floors and pavements that require dry cleaning. The recessed housing has pre-tropized tube inlets (M20/M25). The height can be adjusted to the top edge of the floor covering using the 4 leveling brackets. The minimum mounting depth is 110 mm and the leveling margin is + 25 mm.
Visible frame on the steel cladding and stainless steel lid. Up to 2 modular data connectors can be mounted with optional data system holders.
| Feature Name | Feature Value |
|---|---|
| Cover model (EF009212) | Square |
| With cable outlet in cover (EF015333) | Yes |
| Material cover (EF005414) | Stainless steel |
| With opening carpeting (EF004541) | Yes |
| Protective frame carpeting (EF004543) | No |
| Suitable for subfloor duct (EF006409) | No |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for wet cleaning (EF005109) | No |
