View larger
Images are for illustrative purposes only. Please refer to data sheet for details

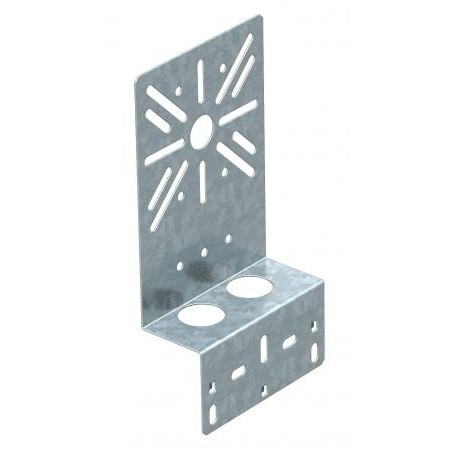

7084765 OBO BETTERMANN PLATE P/CASE MP WI KL. FS
MP WI KL. FS
7084765
OBO BETTERMANN
1 Pcs.
PLATE P/CASE MP WI KL. FS
Mounting plate, angled FS. Angled mounting plate, for fixing on the side rail of the cable tray.
Cables > Mounting plate for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,5493 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | 210x120 |
| Fastening type | Screw fastening |
| Height | 210 mm |
| Material | Steel |
| Plate thickness | 1 mm |
|---|---|
| Rustproof steel, pickled | no |
| Surface | Strip galvanized |
| Version for | Vertical |
| Width | 4,72 in |
| Width | 120 mm |
