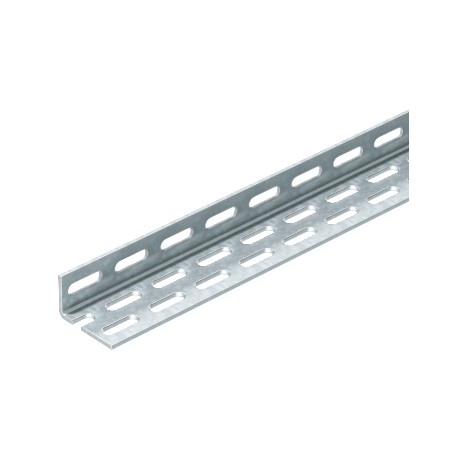

OBO BETTERMANN WP 40 65 5000 FT 6373070 OBO BETTERMANN ANGLE PROFILE, PERFORATED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6373070 OBO BETTERMANN ANGLE PROFILE, PERFORATED

WP 40 65 5000 FT

6373070

OBO BETTERMANN

5 m.

ANGLE PROFILE, PERFORATED Angle profile WP40/65. Perforated angle profile for creation of special support structures.

Automation > Mounting rail/-profile
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty structural framing, the Obo Bettermann angle profile, perforated is an L-shaped metal bracket used widely in industrial facilities to construct rigid support frameworks for cable management systems. These profiles offer versatile mounting attachment points for mechanical and electrical assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 5,926 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 40x65x5000
  • Height: 40 mm
  • Length: 5000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • Plate thickness: 4 mm
  • Profile shape: L profile
  • Side perforation: yes
  • Surface: Hot-dip galvanised
  • Type of perforation: 2 sides perforated
  • Version for: Single profile
  • Width: 65 mm

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate5,926 kg CO2e / 1 Meter
Colourzinc
Dimension40x65x5000
Height40 mm
Length5000 mm
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
Plate thickness4 mm
Profile shapeL profile
Side perforationyes
SurfaceHot-dip galvanised
Type of perforation2 sides perforated
Version forSingle profile
Width65 mm
With toothingno
