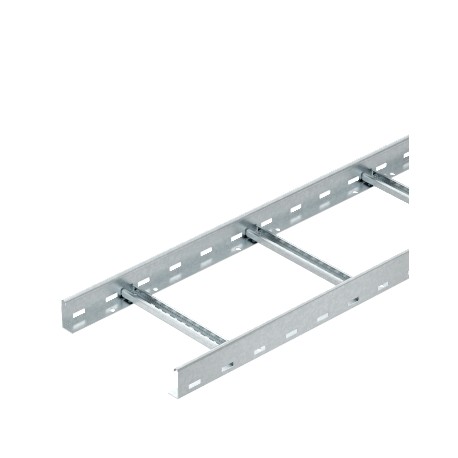

6209727 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x500 FS
LCIS 650 3 FT
6209727
OBO BETTERMANN
3 Pcs.
Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A perforated cable tray from Obo Bettermann organizes and protects wiring runs while facilitating ventilation within commercial and industrial electrical rooms. Tray systems are fundamental for maintaining neat, accessible wire placement across various facility layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 8,0247 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 60x500x3000
- Dimension B: 500 mm
- Fastening of rung: Welded
- Height: 60 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Rail thickness: 1,5 mm
- Rung distance: 300 mm
- Rung slot dimension: 17,00
- Rustproof steel, pickled: no
- Side perforation: yes
- Side rail version: Flat profile
- Support spacing 1.5 m: 3,3 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,0247 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x500x3000 |
| Dimension B | 500 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 20000 mm² |
| Usable cross-section | 200 cm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 500 mm |
