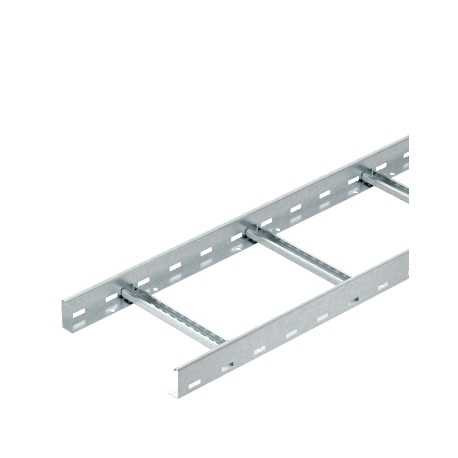

OBO BETTERMANN LCIS 630 3 FT 6209723 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x300 FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6209723 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x300 FS

LCIS 630 3 FT

6209723

OBO BETTERMANN

3 Pcs.

TRAY ESC PERF. SOLDD 60x300 FS Cable ladder LCIS 60, 3 m C30 FT. Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H.... Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann perforated cable tray provides a structured and ventilated channel for organizing electrical cabling throughout commercial and industrial buildings. Cable trays are universally applied in electrical installations to secure bundles of power, data, and control lines along walls and ceilings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 6,7838 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 60x300x3000
  • Dimension B: 300 mm
  • Fastening of rung: Welded
  • Height: 60 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 1,5 mm
  • Rung distance: 300 mm
  • Rung slot dimension: 17,00
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Side rail version: Flat profile
  • Support spacing 1.5 m: 3,3 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate6,7838 kg CO2e / 1 Meter
Colourzinc
Dimension60x300x3000
Dimension B300 mm
Fastening of rungWelded
Height60 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness1,5 mm
Rung distance300 mm
Rung slot dimension17,00
Rustproof steel, pickledno
Side perforationyes
Side rail versionFlat profile
Support spacing 1.5 m3,3 kN/m
Support spacing 2.0 m2 kN/m
Support spacing 2.5 m1,3 kN/m
Support spacing 3.0 m1 kN/m
Support spacing 3.5 m0,78 kN/m
Support spacing 4.0 m0,4 kN/m
Support spacing 4.5 m0,3 kN/m
Support spacing 5.0 m0,2 kN/m
SurfaceHot-dip galvanised
Usable cross-section120 cm²
Usable cross-section12000 mm²
Version of the rungsProfile perforated
Wide-span versionno
Width300 mm
