LCIS 620 3 FT 6209721 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x200 FS
LCIS 620 3 FT
6209721
OBO BETTERMANN
3 m.
TRAY ESC PERF. SOLDD 60x200 FS

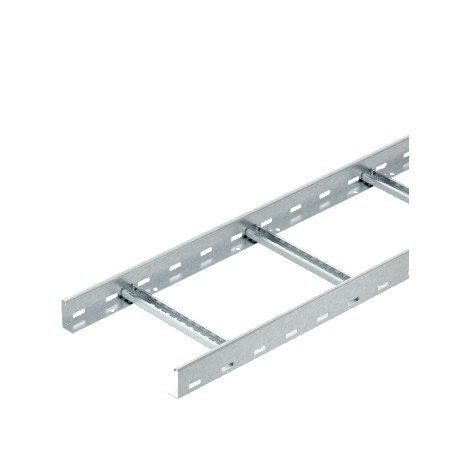

LCIS 620 3 FT stair tray, Perforated step, welded 60x200x3000 Steel, St, Hot dip galvanized, DIN EN ISO 1461
Cable ladder LCIS 60, 3 m C30 FT. Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H.... Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 6,2733 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x200x3000 |
| Dimension B | 200 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 80 cm² |
| Usable cross-section | 8000 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 200 mm |
