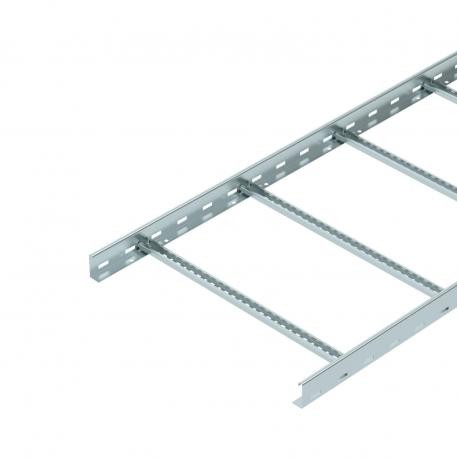

LCIS 660 3 FS 6209618 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x600 FT
LCIS 660 3 FS
6209618
OBO BETTERMANN
3 m.
TRAY ESC PERF. SOLDD 60x600 FT
LCIS 660 3 FS ladder tray, Perforated step, welded 60x600x3000 Steel, St, galvanized in band, DIN EN 10346
LCIS 60 cable ladder, 3 m C30 FS. Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H.... Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,7106 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x600x3000 |
| Dimension B | 600 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 24000 mm² |
| Usable cross-section | 240 cm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 600 mm |
