View larger
Images are for illustrative purposes only. Please refer to data sheet for details

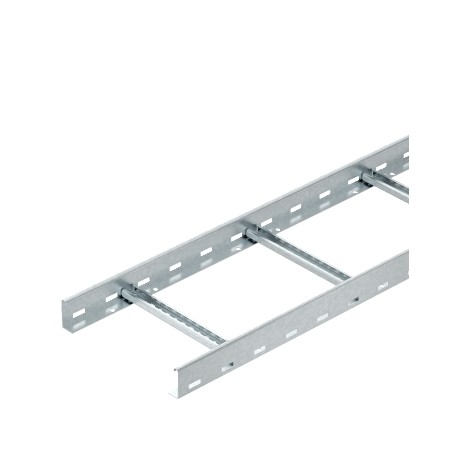

LCIS 650 3 FS 6209616 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x500 FT
LCIS 650 3 FS
6209616
OBO BETTERMANN
3 m.
TRAY ESC PERF. SOLDD 60x500 FT
LCIS 650 3 FS ladder tray, Perforated step, welded 60x500x3000 Steel, St, galvanized in band, DIN EN 10346
LCIS 60 ladder tray, 3 m C30 FS. Ladder tray with a wing height of 60 mm with welded C30 profile rungs, open upwards. Rolled sidebar as reinforcement and as edge protection. The fixing on the shoulder is carried out with LKS 40 fixing flanges. The groove measurement of the step is 16.5 mm; the suitable half-round clamp on profile is BS-H.... Magnetic insulation without cap 10 dB, with cap 15 dB.
Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Cable ladder with 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
