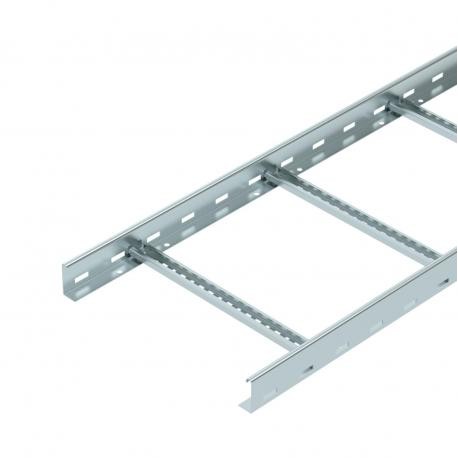

6209614 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x400 FT
LCIS 640 3 FS
6209614
OBO BETTERMANN
3 m.
Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured to accommodate secure cable runs, this Obo Bettermann perforated cable tray provides dependable structural support for electrical wiring systems across industrial buildings. Cable trays are a foundational element for organizing, separating, and protecting large quantities of cables during facility routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,5721 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 60x400x3000
- Dimension B: 400 mm
- Fastening of rung: Welded
- Height: 60 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Rail thickness: 1,5 mm
- Rung distance: 300 mm
- Rung slot dimension: 17,00
- Rustproof steel, pickled: no
- Side perforation: yes
- Side rail version: Flat profile
- Support spacing 1.5 m: 3,3 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,5721 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x400x3000 |
| Dimension B | 400 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 160 cm² |
| Usable cross-section | 16000 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 400 mm |
