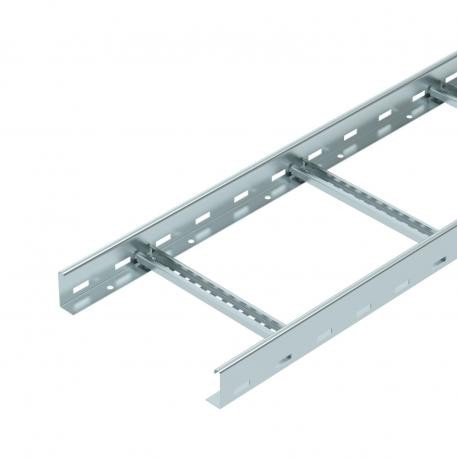

6209612 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x300 FT
LCIS 630 3 FS
6209612
OBO BETTERMANN
3 m.
Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A perforated cable tray is widely utilized in commercial and industrial electrical architecture to support, route, and protect cables while facilitating easy access for maintenance and expansion. This Obo Bettermann part number LCIS 630 3 FS is engineered to ensure reliable cable organization in diverse environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,0024 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 60x300x3000
- Dimension B: 300 mm
- Fastening of rung: Welded
- Height: 60 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Rail thickness: 1,5 mm
- Rung distance: 300 mm
- Rung slot dimension: 17,00
- Rustproof steel, pickled: no
- Side perforation: yes
- Side rail version: Flat profile
- Support spacing 1.5 m: 3,3 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,0024 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x300x3000 |
| Dimension B | 300 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 120 cm² |
| Usable cross-section | 12000 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 300 mm |
