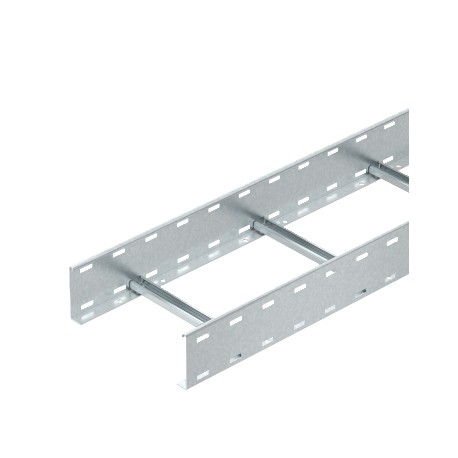

OBO BETTERMANN SLCS 11120 3 FT 6207322 OBO BETTERMANN TRAY ESC BLIND SUN 110x1200 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6207322 OBO BETTERMANN TRAY ESC BLIND SUN 110x1200 FT

SLCS 11120 3 FT

6207322

OBO BETTERMANN

3 m.

TRAY ESC BLIND SUN 110x1200 FT Cable ladder SLCS 110, 3 m C30 FT. Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A heavy-duty cable tray system is utilized across industrial complexes to manage, organize, and protect high-volume electrical wiring installations. This Obo Bettermann part number SLCS 11120 3 FT provides a wide, robust routing surface designed for extensive commercial distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 17,8396 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 110x1200x3m
  • Dimension B: 1100 mm
  • Fastening of rung: Welded
  • Height: 110 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rung distance: 300 mm
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Side rail version: Flat profile
  • Support spacing 2.0 m: 3,5 kN/m
  • Support spacing 3.0 m: 1,9 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate17,8396 kg CO2e / 1 Meter
Colourzinc
Dimension110x1200x3m
Dimension B1100 mm
Fastening of rungWelded
Height110 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rung distance300 mm
Rustproof steel, pickledno
Side perforationyes
Side rail versionFlat profile
Support spacing 2.0 m3,5 kN/m
Support spacing 3.0 m1,9 kN/m
Support spacing 4.0 m1 kN/m
Support spacing 5.0 m0,8 kN/m
Support spacing 6.0 m0,25 kN/m
SurfaceHot-dip galvanised
Usable cross-section118000 mm²
Usable cross-section1180 cm²
Version of the rungsProfile unperforated
Wide-span versionno
Width1200 mm
