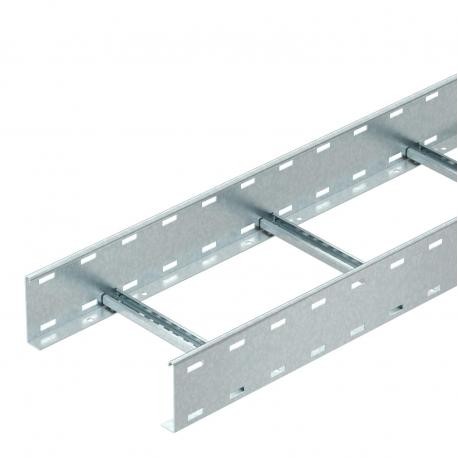

OBO BETTERMANN SLCS 1180 3 FT 6207316 OBO BETTERMANN TRAY ESC BLIND SUN 110x800 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6207316 OBO BETTERMANN TRAY ESC BLIND SUN 110x800 FT

SLCS 1180 3 FT

6207316

OBO BETTERMANN

3 m.

TRAY ESC BLIND SUN 110x800 FT Cable ladder SLCS 110, 3 m C30 FT. Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann blind sun cable tray is built to provide robust mechanical housing and environmental shielding for complex industrial cable layouts. Cable trays are indispensable components in electrical engineering, utilized to route, support, and protect wiring systems across large infrastructures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 15,0328 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 110x800x3000
  • Dimension B: 800 mm
  • Fastening of rung: Welded
  • Height: 110 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rung distance: 300 mm
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Side rail version: Flat profile
  • Support spacing 2.0 m: 3,5 kN/m
  • Support spacing 3.0 m: 1,9 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate15,0328 kg CO2e / 1 Meter
Colourzinc
Dimension110x800x3000
Dimension B800 mm
Fastening of rungWelded
Height110 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rung distance300 mm
Rustproof steel, pickledno
Side perforationyes
Side rail versionFlat profile
Support spacing 2.0 m3,5 kN/m
Support spacing 3.0 m1,9 kN/m
Support spacing 4.0 m1 kN/m
Support spacing 5.0 m0,8 kN/m
Support spacing 6.0 m0,25 kN/m
SurfaceHot-dip galvanised
Usable cross-section720 cm²
Usable cross-section72000 mm²
Version of the rungsProfile unperforated
Wide-span versionno
Width800 mm
