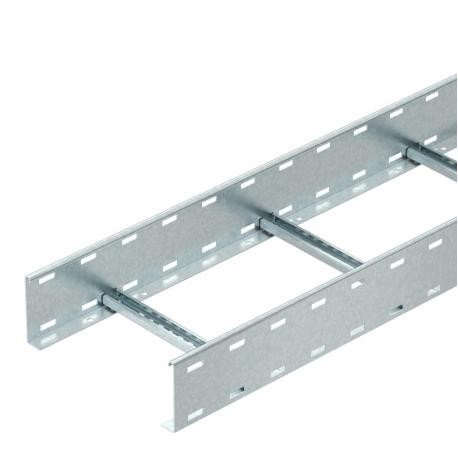

6207312 OBO BETTERMANN TRAY ESC BLIND SUN 110x600 FT
SLCS 1160 3 FT
6207312
OBO BETTERMANN
3 m.
Cables > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann TRAY ESC BLIND SUN 110x600 FT cable tray system incorporates protective covers to shield internal cabling from environmental wear, moisture, and solar radiation in outdoor installations. Covered tray assemblies are standard across industrial processing plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 13,9295 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 110x600x3000
- Dimension B: 600 mm
- Fastening of rung: Welded
- Height: 110 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Rail thickness: 2 mm
- Rung distance: 300 mm
- Rung slot dimension: 17,00
- Rustproof steel, pickled: no
- Side perforation: yes
- Side rail version: Flat profile
- Support spacing 2.0 m: 4 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,9295 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110x600x3000 |
| Dimension B | 600 mm |
| Fastening of rung | Welded |
| Height | 110 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 2 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 2.0 m | 4 kN/m |
|---|---|
| Support spacing 2.5 m | 3 kN/m |
| Support spacing 3.0 m | 2,3 kN/m |
| Support spacing 3.5 m | 1,6 kN/m |
| Support spacing 4.0 m | 1 kN/m |
| Support spacing 4.5 m | 0,83 kN/m |
| Support spacing 5.0 m | 0,7 kN/m |
| Support spacing 6.0 m | 0,25 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 54000 mm² |
| Usable cross-section | 540 cm² |
| Version of the rungs | Profile unperforated |
| Wide-span version | no |
| Width | 600 mm |
