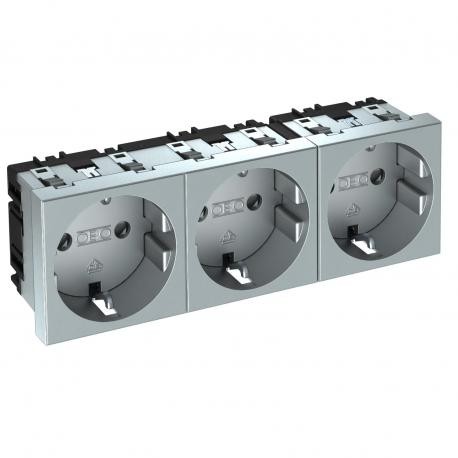

6120052 OBO BETTERMANN POWER OUTLET STD-D0 AL3
STD-D0 AL3
6120052
OBO BETTERMANN
1 Pcs.
Automation > Socket outlet
EGS device systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A power outlet STD-D0 AL3 from Obo Bettermann provides a standardized connection point for electrical consumers in structured cabling and distribution setups. Such receptacles are routinely embedded in wall ducts, furniture systems, or raceways to deliver dependable utility power across commercial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Approvals: VDE
- Closable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,5537 kg CO2e / 1 Piece
- Coding: no
- Colour: Aluminium painted
- Connection type: Screwless terminal
- Cover: Central plate
- Depth: 42 mm
- Dimension: 250V, 10/16A
- Ejection mechanism: no
- Error current protection: no
- Fastening type: Lock
- For more difficult conditions (according to VDE): no
- Halogen-free: yes
- Height: 45 mm
- Hinged cover: no
More info
▲| Approvals | VDE |
|---|---|
| Closable | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5537 kg CO2e / 1 Piece |
| Coding | no |
| Colour | Aluminium painted |
| Connection type | Screwless terminal |
| Cover | Central plate |
| Depth | 42 mm |
| Dimension | 250V, 10/16A |
| Ejection mechanism | no |
| Error current protection | no |
| Fastening type | Lock |
| For more difficult conditions (according to VDE) | no |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| increased touch protection | yes |
| Insulated installation | no |
| Labelling panel | no |
| Material | Polycarbonate |
| Mounting type | Device installation duct |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
|---|---|
| Number of poles | 2 |
| Number of units | 3 |
| Operating temperature, max. | 40 °C |
| Operating temperature, min. | -5 °C |
| Power reserve | no |
| Printed label/coding | Without printing |
| Protection rating | Other |
| Rotated central insert | no |
| Socket angle | 0° |
| Socket version | Protective contact |
| Special power supply | Without special power supply |
| Surface version | Matt |
| Surge protection | no |
| Transparent | no |
| Version for | Triple 0° |
| Warning light | no |
| Width | 135 mm |
| With fine-wire fuse | no |
| With functional lighting | no |
| With on/off switch | no |
| With orientation lighting | no |
