> OBO BETTERMANN > EGS device systems - OBO BETTERMANN > 6120050

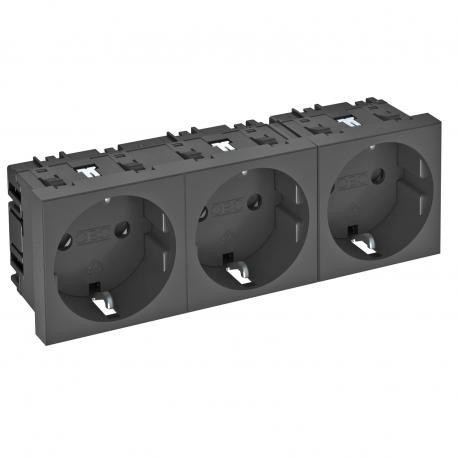

OBO BETTERMANN STD-D0 SWGR3 STD-D0 SWGR3 6120050 OBO BETTERMANN POWER OUTLET STD-D0 NGGR3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STD-D0 SWGR3 6120050 OBO BETTERMANN POWER OUTLET STD-D0 NGGR3

STD-D0 SWGR3

6120050

OBO BETTERMANN

1 Pcs.

POWER OUTLET STD-D0 NGGR3 0° electrical socket, triple STD-D0 SWGR3, ground connection 250V, 10/16A Polycarbonate, PC, 0° power socket, with earth connection, triple. Power socket with triple 0° grounding plug, with increased protection against accidental contact, with plug terminals, 2 poles, 16 A, 250 V~, with connection terminals according to IEC 60884-1. For installation in Rapid 45 channels, mechanism channels, installation columns, underfloor systems and Deskbox sockets.

Automation > Socket outlet
EGS device systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An STD-D0 SWGR3 6120050 OBO BETTERMANN POWER OUTLET STD-D0 NGGR3 by Obo Bettermann is a standard CEE 7/3 socket designed to deliver reliable power distribution in commercial electrical networks. Type F outlets with enhanced contact protection are standard specifications for modern building installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Socket outlet CEE 7/3 (type F)
  • With signal lamp (EF000198): No
  • Number of modules (module system) (EF009573): 0
  • Number of socket outlets switchable (EF008814): 0
  • Connection type (EF000124): Screwless terminal
  • With hinged lid (EF000117): No
  • With enhanced contact protection (EF000389): Yes
  • Label space/information surface (EF001035): No
  • Colour (EF000007): Black
  • RAL-number (similar) (EF003882): 7021
  • Transparent (EF006243): No
  • Lockable (EF000113): No
  • Eject-mechanism (EF001051): No
  • Insulated mounting (EF001588): No
  • With function lighting (EF008861): No
  • With orientation lighting (EF008862): No

More info

▲
Protective contact socket triple 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
