View larger
Images are for illustrative purposes only. Please refer to data sheet for details

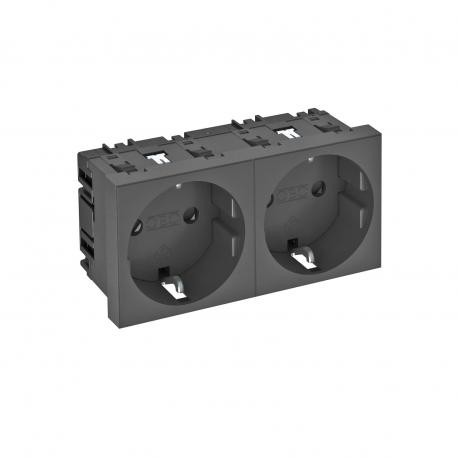

6120030 OBO BETTERMANN POWER OUTLET STD-D0 NGGR2
STD-D0 SWGR2
6120030
OBO BETTERMANN
1 Pcs.
POWER OUTLET STD-D0 NGGR2
0° socket, protective contact, double. Power socket, double 0°, with increased touch protection with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1.For installation in Rapid 45 trunking, device installation trunking, service poles, underfloor systems and desk boxes.
Automation > Socket outlet
EGS device systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Approvals | VDE |
|---|---|
| Closable | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3227 kg CO2e / 1 Piece |
| Coding | no |
| Colour | Black-grey; RAL 7021 |
| Connection type | Screwless terminal |
| Cover | Central plate |
| Depth | 42 mm |
| Dimension | 250V, 10/16A |
| Ejection mechanism | no |
| Error current protection | no |
| Fastening type | Lock |
| For more difficult conditions (according to VDE) | no |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| increased touch protection | yes |
| Insulated installation | no |
| Labelling panel | no |
| Material | Polycarbonate |
| Mounting type | Device installation duct |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
|---|---|
| Number of poles | 2 |
| Number of units | 2 |
| Operating temperature, max. | 40 °C |
| Operating temperature, min. | -5 °C |
| Power reserve | no |
| Printed label/coding | Without printing |
| Protection rating | Other |
| Rotated central insert | no |
| Socket angle | 0° |
| Socket version | Protective contact |
| Special power supply | Without special power supply |
| Surface version | Matt |
| Surge protection | no |
| Transparent | no |
| Version for | Double 0° |
| Warning light | no |
| Width | 90 mm |
| With fine-wire fuse | no |
| With functional lighting | no |
| With on/off switch | no |
| With orientation lighting | no |
