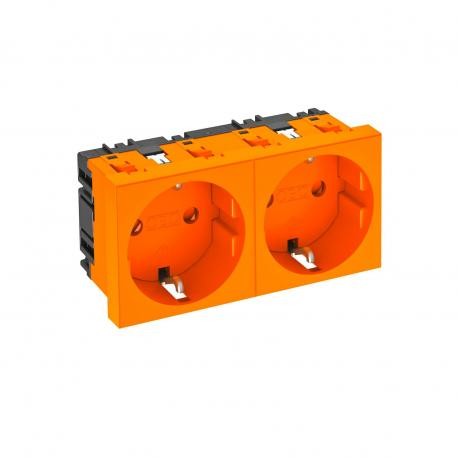

6120024 OBO BETTERMANN POWER OUTLET STD-D0 NARAN2
STD-D0 ROR2
6120024
OBO BETTERMANN
1 Pcs.
Automation > Socket outlet
EGS device systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann power outlet STD-D0 NARAN2 provides a reliable termination point for electrical equipment with distinctive color identification. Such utility receptacles are commonly deployed in commercial and technical infrastructure to separate standard power from dedicated feeds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Approvals: VDE
- Closable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,3003 kg CO2e / 1 Piece
- Coding: no
- Colour: Pure orange
- RAL 2004:
- Connection type: Screwless terminal
- Cover: Central plate
- Depth: 42 mm
- Dimension: 250V, 10/16A
- Ejection mechanism: no
- Error current protection: no
- Fastening type: Lock
- For more difficult conditions (according to VDE): no
- Halogen-free: yes
- Height: 45 mm
- Hinged cover: no
More info
▲| Approvals | VDE |
|---|---|
| Closable | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3003 kg CO2e / 1 Piece |
| Coding | no |
| Colour | Pure orange; RAL 2004 |
| Connection type | Screwless terminal |
| Cover | Central plate |
| Depth | 42 mm |
| Dimension | 250V, 10/16A |
| Ejection mechanism | no |
| Error current protection | no |
| Fastening type | Lock |
| For more difficult conditions (according to VDE) | no |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| increased touch protection | yes |
| Insulated installation | no |
| Labelling panel | no |
| Material | Polycarbonate |
| Mounting type | Device installation duct |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
|---|---|
| Number of poles | 2 |
| Number of units | 2 |
| Operating temperature, max. | 40 °C |
| Operating temperature, min. | -5 °C |
| Power reserve | no |
| Printed label/coding | Without printing |
| Protection rating | Other |
| Rotated central insert | no |
| Socket angle | 0° |
| Socket version | Protective contact |
| Special power supply | Without special power supply |
| Surface version | Matt |
| Surge protection | no |
| Transparent | no |
| Version for | Double 0° |
| Warning light | no |
| Width | 90 mm |
| With fine-wire fuse | no |
| With functional lighting | no |
| With on/off switch | no |
| With orientation lighting | no |
