View larger
Images are for illustrative purposes only. Please refer to data sheet for details

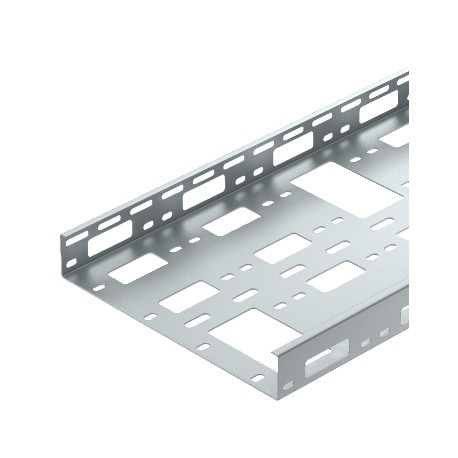

6075370 OBO BETTERMANN SMALL CHANNEL AZK 300 FS
AZK 300 FS
6075370
OBO BETTERMANN
3 m.
SMALL CHANNEL AZK 300 FS
AZ small duct 300 FS. AZ channel with a side height of 50 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 10,8625 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 50x300x1,5 |
| Dimension | 50x300x3000 |
| Height | 50 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
|---|---|
| Side perforation | yes |
| Support spacing 1.0 m | 1,9 kN/m |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1,2 kN/m |
| Support spacing 2.5 m | 0,8 kN/m |
| Support spacing 3.0 m | 0,3 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 150 cm² |
| Usable cross-section | 15000 mm² |
| Wide-span version | no |
| Width | 300 mm |
