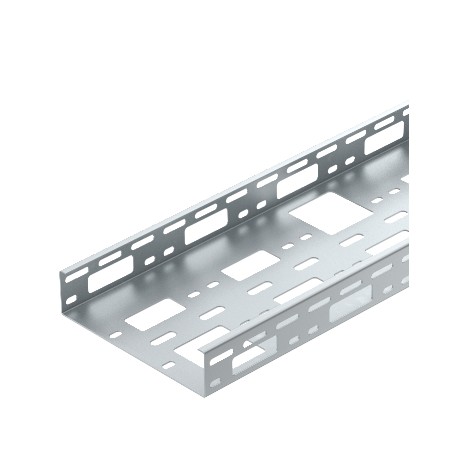

OBO BETTERMANN AZK 200 FT 6075350 OBO BETTERMANN SMALL CHANNEL AZK 200 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6075350 OBO BETTERMANN SMALL CHANNEL AZK 200 FT

AZK 200 FT

6075350

OBO BETTERMANN

3 m.

SMALL CHANNEL AZK 200 FT AZ channel system 200 FT. AZ channel with a side height of 50 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Small channel Obo Bettermann AZK 200 FT provides a compact pathway for managing and protecting low-voltage cabling in control panels and building installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 7,7883 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 50x200x3000
  • Dimension: 50x200x1,5
  • Height: 50 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Support spacing 1.0 m: 2,5 kN/m
  • Support spacing 1.5 m: 1,9 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate7,7883 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension50x200x3000
Dimension50x200x1,5
Height50 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.0 m2,5 kN/m
Support spacing 1.5 m1,9 kN/m
Support spacing 2.0 m1,3 kN/m
Support spacing 2.5 m0,8 kN/m
Support spacing 3.0 m0,3 kN/m
SurfaceHot-dip galvanised
Usable cross-section10000 mm²
Usable cross-section100 cm²
Wide-span versionno
Width200 mm
