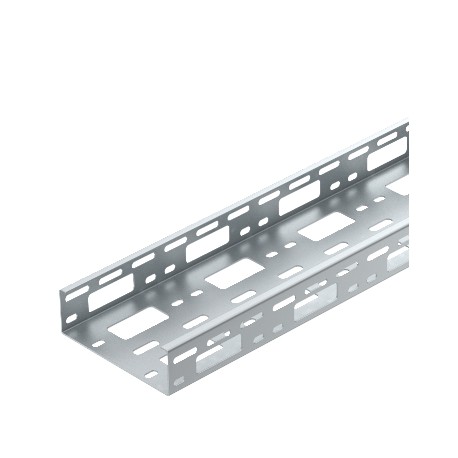

6075325 OBO BETTERMANN SMALL CHANNEL AZK 150 FT
AZK 150 FT
6075325
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Obo Bettermann, the AZK 150 FT is a small channel designed for organized and secure routing of compact wire harnesses. Small cable channels are commonly utilized within machine builds and electrical distribution panels for neat management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 6,4634 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 50x150x3000
- Dimension: 50x150x1,5
- Height: 50 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
- Plate thickness: 1,5 mm
- Rustproof steel, pickled: no
- Side perforation: yes
- Support spacing 1.0 m: 3 kN/m
- Support spacing 1.5 m: 2 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 6,4634 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 50x150x3000 |
| Dimension | 50x150x1,5 |
| Height | 50 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
|---|---|
| Side perforation | yes |
| Support spacing 1.0 m | 3 kN/m |
| Support spacing 1.5 m | 2 kN/m |
| Support spacing 2.0 m | 1,2 kN/m |
| Support spacing 2.5 m | 0,8 kN/m |
| Support spacing 3.0 m | 0,25 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 7500 mm² |
| Usable cross-section | 75 cm² |
| Wide-span version | no |
| Width | 150 mm |
