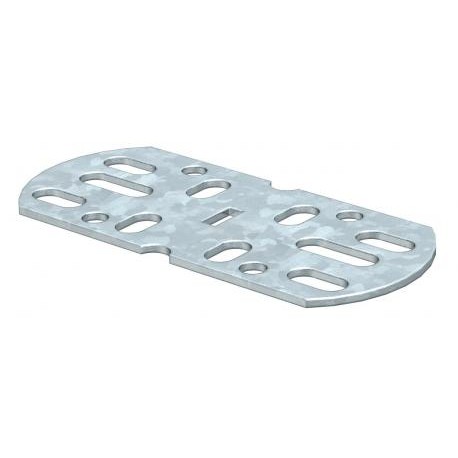

6066550 OBO BETTERMANN UNION TO CHANNEL AZ VF AZK FT
VF AZK FT
6066550
OBO BETTERMANN
25 Pcs.
UNION TO CHANNEL AZ VF AZK FT
Straight and angle connector 50 FT. Straight and angle connector for connection of AZ channels.
Cables > Connector for cable support system
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann VF AZK FT union connects cable tray channels to establish seamless junction points in electrical pathways. Transition hardware ensures mechanical continuity across diverse cable support profiles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustable connector, horizontal: no
- Articulated connector, vertical: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1992 kg CO2e / 1 Piece
- Colour: zinc
- Connection type: Screw connector
- Dimension: 45x100
- Height: 45 mm
- Length: 100 mm
- Maintain electrical functions: no
- Material: Steel
- Plate thickness: 1,5 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: no
- Suitable for cable tray: yes
- Suitable for cable tray system height: 50 mm
- Suitable for mesh cable tray: no
More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1992 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 45x100 |
| Height | 45 mm |
| Length | 100 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Plate thickness | 1,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for cable tray system height | 50 mm |
| Suitable for mesh cable tray | no |
| Surface | Hot-dip galvanised |
| Version for | Straight and angle connector |
| Width | 100 mm |
