View larger
Images are for illustrative purposes only. Please refer to data sheet for details

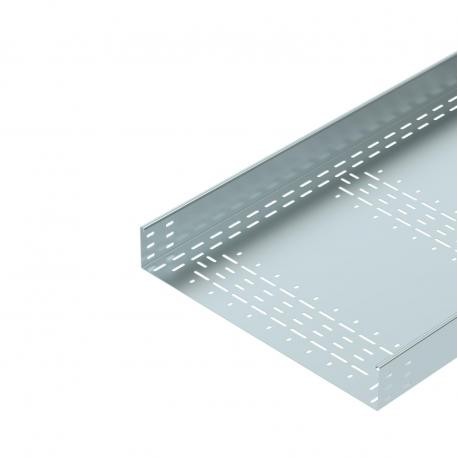

6062010 OBO BETTERMANN TRAY PASSABLE BKRS 1060 FS
BKRS 1060 FS
6062010
OBO BETTERMANN
3 m.
TRAY PASSABLE BKRS 1060 FS
Cable tray BKRS 100 FS. Heavy-duty, walkable cable tray system BKRS with base perforation, in 100 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 28,5948 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 100x600x3000 |
| Dimension B | 600 mm |
| Dimension H | 100 mm |
| Dimension L | 3000 mm |
| Height | 100 mm |
| Height | 4 in |
| Length | 3000 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 2 mm |
| Plate thickness | 0,08 in |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 519 cm² |
| Usable cross-section | 51852 mm² |
| Wide-span version | no |
| Width | 24 in |
| Width | 600 mm |
| With cover | no |
