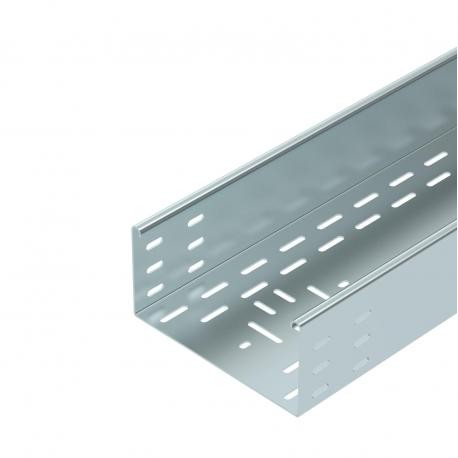

OBO BETTERMANN BKRS 1020 FS 6062002 OBO BETTERMANN TRAY PASSABLE BKRS 1020 FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

6062002 OBO BETTERMANN TRAY PASSABLE BKRS 1020 FS

BKRS 1020 FS

6062002

OBO BETTERMANN

3 m.

TRAY PASSABLE BKRS 1020 FS Cable tray BKRS 100 FS. Heavy-duty, walkable cable tray system BKRS with base perforation, in 100 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Passable floor cable trays provide heavy load-bearing raceways built to withstand foot traffic while neatly organizing electrical infrastructure beneath or along walking planes. The Obo Bettermann BKRS 1020 FS is constructed from durable steel to handle rigorous industrial applications.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 14,5342 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 100x200x3000
  • Dimension B: 200 mm
  • Dimension H: 100 mm
  • Dimension L: 3000 mm
  • Height: 4 in
  • Height: 100 mm
  • Length: 10 ft
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate14,5342 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension100x200x3000
Dimension B200 mm
Dimension H100 mm
Dimension L3000 mm
Height4 in
Height100 mm
Length10 ft
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness0,08 in
Plate thickness2 mm
Rustproof steel, pickledno
Side perforationno
SurfaceStrip galvanized
Type of connector, cable support systemScrewed
Usable cross-section171 cm²
Usable cross-section17052 mm²
Wide-span versionno
Width8 in
Width200 mm
With coverno
