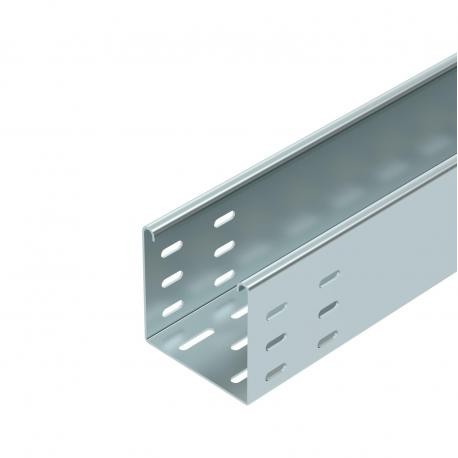

6062000 OBO BETTERMANN TRAY PASSABLE BKRS 1010 FS
BKRS 1010 FS
6062000
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann tray passable BKRS 1010 FS is a heavy-duty cable management component engineered to support and protect electrical wiring in industrial and commercial routing paths. Cable trays like this secure large bundles of conductors along walls, ceilings, or floors while ensuring organized layouts and structural protection throughout complex facility networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 11,0206 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 100x100x3000
- Dimension B: 100 mm
- Dimension H: 100 mm
- Dimension L: 3000 mm
- Height: 100 mm
- Height: 4 in
- Length: 3000 mm
- Length: 10 ft
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,0206 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 100x100x3000 |
| Dimension B | 100 mm |
| Dimension H | 100 mm |
| Dimension L | 3000 mm |
| Height | 100 mm |
| Height | 4 in |
| Length | 3000 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 2 mm |
| Plate thickness | 0,08 in |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 8352 mm² |
| Usable cross-section | 84 cm² |
| Wide-span version | no |
| Width | 4 in |
| Width | 100 mm |
| With cover | no |
