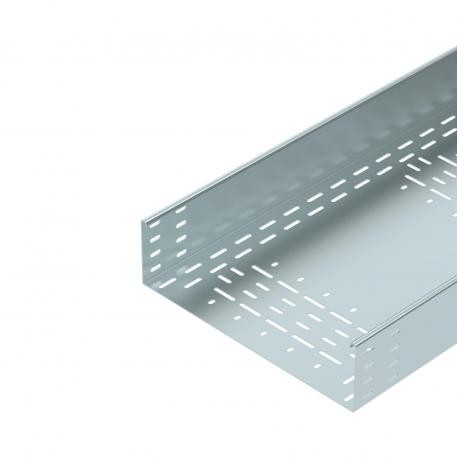

6061987 OBO BETTERMANN TRAY PASSABLE BKRS 1140 FS
BKRS 1140 FS
6061987
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built as a passable tray, the BKRS 1140 FS from Obo Bettermann provides heavy-duty cable protection in areas requiring floor traffic and equipment passage. Passable tray systems combine robust load-bearing covers with internal routing channels for demanding floors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 22,5809 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 110x400x3000
- Dimension B: 400 mm
- Dimension H: 110 mm
- Dimension L: 3000 mm
- Height: 4 in
- Height: 110 mm
- Length: 10 ft
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 22,5809 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x400x3000 |
| Dimension B | 400 mm |
| Dimension H | 110 mm |
| Dimension L | 3000 mm |
| Height | 4 in |
| Height | 110 mm |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 2 mm |
|---|---|
| Plate thickness | 0,08 in |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 3,44 kN/m |
| Support spacing 2.0 m | 3,33 kN/m |
| Support spacing 2.5 m | 2,61 kN/m |
| Support spacing 3.0 m | 2,08 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 39600 mm² |
| Usable cross-section | 396 cm² |
| Wide-span version | no |
| Width | 400 mm |
| Width | 16 in |
| With cover | no |
