BKRS 1130 FS 6061985 OBO BETTERMANN TRAY PASSABLE BKRS 1130 FS
BKRS 1130 FS
6061985
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

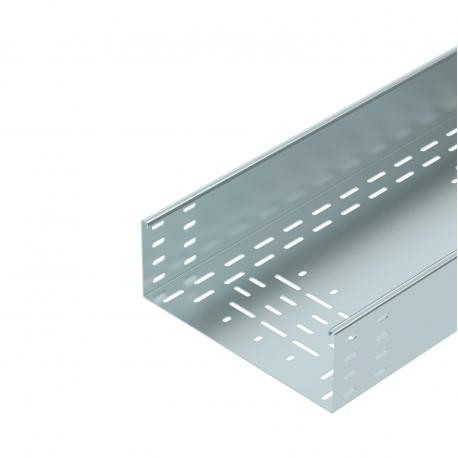

Obo Bettermann passable tray BKRS 1130 FS is a heavy-duty steel cable tray designed to support substantial electrical wiring loads in areas requiring high structural durability. Walkable or heavy-duty cable trays protect critical cabling in heavy industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 110 mm
- Width (EF000008): 300 mm
- Material thickness (EF000386): 2 mm
- Length (EF001438): 3000 mm
- Useful cross section (EF005140): 29600 mm²
- With cover (EF007965): No
- Side perforation (EF001122): No
- Bottom perforation (EF004545): Yes
- NATO-mounting holes (EF006059): No
- Model (EF000010): Coupler not included
- Type of connector (EF000141): Screwed
- Suitable for circuit integrity (EF007806): No
- Material (EF002169): Steel
- Surface protection (EF000139): Pre-galvanised
- Weight (EF000167): 8.07 kg/m
- Load test type according to IEC 61537 (EF015362): Type II
