View larger
Images are for illustrative purposes only. Please refer to data sheet for details

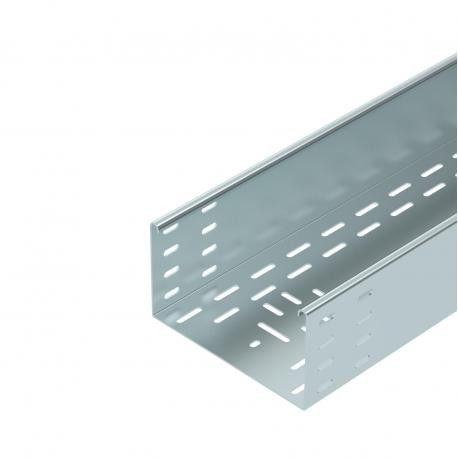

BKRS 1120 FS 6061983 OBO BETTERMANN TRAY PASSABLE BKRS 1120 FS
BKRS 1120 FS
6061983
OBO BETTERMANN
3 m.
TRAY PASSABLE BKRS 1120 FS
BKRS BKRS 1120 FS cable tray, walkable 110x200x3000 Steel, St, strip galvanized, DIN EN 10346
BKRS 110 FS walkable cable tray. Heavy and walkable BKRS cable tray system with 110 mm wing through hole. Magnetic insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Heavy-duty, walk-on cable tray system BKRS with base perforation, in 110 mm side height.
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Width (EF000008) | 200 mm |
| Material thickness (EF000386) | 2 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 19600 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 6.6 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 5070 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 4750 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 2730 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 2000 |
