OBO BETTERMANN BKRS 1110 FS BKRS 1110 FS 6061981 OBO BETTERMANN TRAY PASSABLE BKRS 1110 FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BKRS 1110 FS 6061981 OBO BETTERMANN TRAY PASSABLE BKRS 1110 FS

BKRS 1110 FS

6061981

OBO BETTERMANN

3 m.

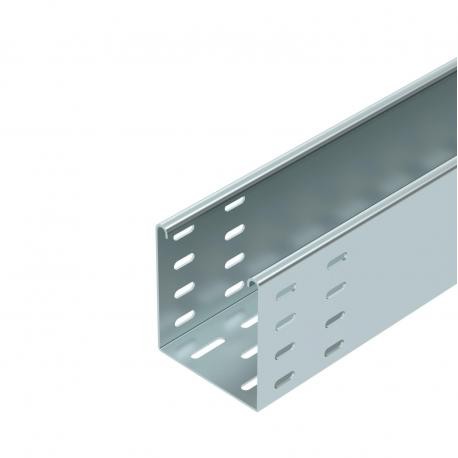

TRAY PASSABLE BKRS 1110 FS BKRS BKRS 1110 FS cable tray, walkable 110x100x3000 Steel, St, strip galvanized, DIN EN 10346 BKRS 110 FS walkable cable tray. Heavy and walkable BKRS cable tray system with 110 mm wing through hole. Magnetic insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an Obo Bettermann BKRS 1110 FS passable cable tray, this robust assembly supports and protects heavy electrical cables in high-traffic or industrial work areas. Passable tray systems are engineered to bear mechanical loads while organizing complex power distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 110 mm
  • Width (EF000008): 100 mm
  • Material thickness (EF000386): 2 mm
  • Length (EF001438): 3000 mm
  • Useful cross section (EF005140): 9600 mm²
  • With cover (EF007965): No
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): Yes
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Coupler not included
  • Type of connector (EF000141): Screwed
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised
  • Weight (EF000167): 5.18 kg/m
  • Load test type according to IEC 61537 (EF015362): Type II

More info

▲
Heavy-duty, walk-on cable tray system BKRS with base perforation, in 110 mm side height.
